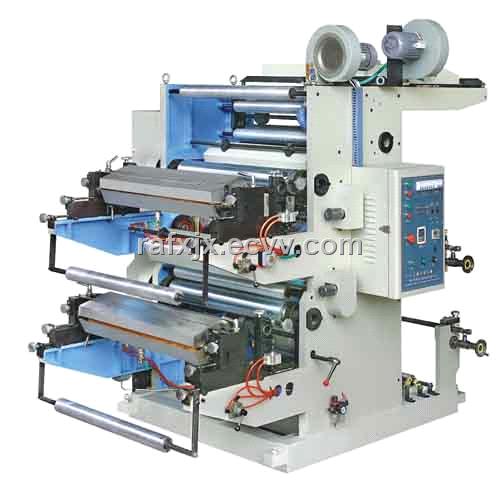

YT Series Double-color Flexography Printing Machine

Detailed Product Description

Application: This machine is suitable for printing such packing materials as non-woven, polyethylene, polypropylene plastic bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Technical Data:

Type	YT-2600	YT-2800	YT-21000

Effective Printing Width	560mm	760mm	960mm

Max.Web Width	600mm	800mm	1000mm

Max.Printing Speed	10-60m/min	10-60m/min	10-60m/min

Max.Mechanical Speed	80m/min	80m/min	80m/min

Max.Diameter of Roll Material	ф560mm	ф560mm	ф560mm

Internal Diameter of Roll Core	ф76mm	ф76mm	ф76mm

Range of Printing Length	191-914mm	191-914mm	191-914mm

Accuracy of Registration	≤0.5mm	≤0.5mm	≤0.5mm

Plate Thickness	2.38mm	2.38mm	2.38mm

Heating Power	4Kw	6Kw	8Kw

Total Power	8Kw	10Kw	12Kw

Weight of Machine	1800kg	200kg	2200kg

Overall Dimension(L×W×H) mm	2500×1700×2200	2500×1900×2200	2500×2100×2200

Place of Origin:	Zhejiang in China
Model No:	YT600-1300
FOB Price:	8000-16000 USD Ningbo
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	wooden case
