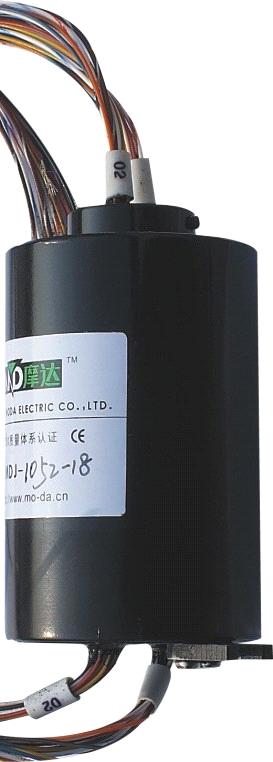

though bore cable clip

Detailed Product Description

Electrical data:
Lead:			AWG16 and AWG26 Tinning wires,PTEE insulated
Standard lead lengths:			500mm(other lengths on request)
Voltage:			600VAC
Insulation Resistance:			≥1000MΩ/500VDC
Dynamic contact Resistance:			＜0.01Ω
Mechanical Data:
Operate Speed:			0-250rpm continuous
Contact material surface:			Brush:silver alloy,Ring:silver-gift copper
Bearing:			Nylon steel ball bearing
Housing:			ABS Engineering plastics
Temperature Rage:			-40Degree to 80 Degree
IP:			51
Description:
A slip ring can be used in any electro-mechanical system that requests unrestrained,continuous rotation while transmitting power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface,collector,swivel,or a rotary joint.a Slip ring can improve system performance by simplifying operations and eliminiting damage-prone wires dangling from movable joints.
A slip ring are metal rings that provide a continuous electrical connection through brushes on stationary contacts.
It's configuration is column type,each ring lies along the durm axis,lkie threads on a bolt.
The MDH1052 use sheaf brush technology which offers several advantages over conventional slip ring contacts,including multiple points of contact per bundle,low contact force per brush,low noise and low contact wear rates.In addition,sheaf brushes do not require lubrication and produce virtually no wear debris.
Application:
Rotary index tables,machining centers etc industrial machinery
Cable reelst,est equipment and machining centers
Heavy equipment turrets
Packaging machines,magnetic clutches,palletizing machines
Process control equipment
Rotary sensors,robotics,emergency lighting
Display/Medical equipment,Exhibit equipment

Place of Origin:	Zhejiang in China
Model No:	MDH1052
Brand Name:	MODA
FOB Price:	10-100 USD SHANGHAI
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 100
Supply Ability:	Piece/Pieces\|10000\|Month
Package:	CARTON
Delivery Time:	30DAYS
