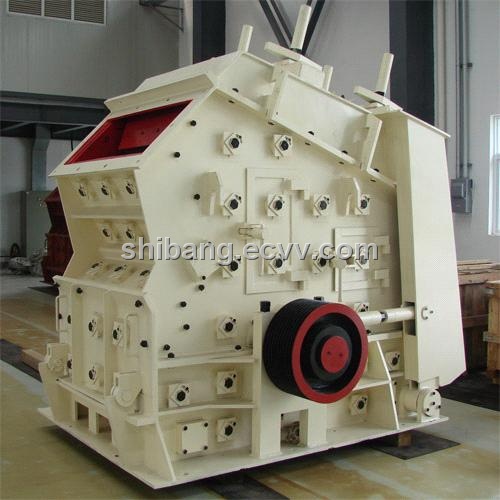

Impact Crusher - Stone Crusher

* Dealing with the material with the side length 500 mm, not more than 350 Mpa anti-pressure strength, Impact Crusher (crusher, stone crusher) can be widely used in the first and secondary crushing. During the process of operating, the rotor in high speed will be brought along by the electric motor. The material will be stricken by the Flat Hammer to be crushed, and then be countered to the liner for the second crushing, then be discharged through the discharge opening.

* Impact Crusher (crusher, stone crusher) features many advantages: simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic Shape for the final products. The discharge opening can be adjusted. It is widely used in water and electricity, expressway, sand and stone, crushing fields. It is proved that Impact Crusher is better than Cone Crusher and Hammer Crusher.

* Operating principle: This impact crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.

Specification

Type Spec. Feeder Opening (mm) Feeding Size (mm) Crushing Capacity (t / h) Motor Power (kw) Weight (t) PF-1010 Φ1000×1050 400×1080 350 50-80 55-75 12 PF-1210 Φ1250×1050 400×1080 350 70-120 110-132 14 PF-1214 Φ1250×1400 400×1430 350 130-180 132-160 18. 6 PF-1315 Φ1320×1500 860×1520 500 160-250 180-260 19

Note: This specification is just reference, and any changes are subject to the products.

Place of Origin:	Shanghai in China
Brand Name:	SBM
Certificate:	ISO9001:2000
Other Price Terms:	CIF, CFR, negotiable
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	export standard
Delivery Time:	30 days
