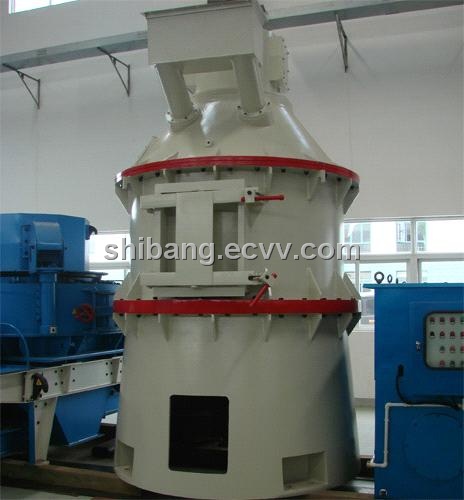

Straight Centrifugal Mill (ZTM86, ZTM125, ZTM165)

Straight Centrifugal Grinding Mill (vertical mill, grinding mill)Operating principle:
It does not need to allocate whirlwind separator and a lot of pipelines .etc, so the occupation of land space is small.

Working principle and main structure
The system consists of main unit, blower, cloth dust cleaner and pipes.
The working principle is as follows. The central axle is rotated by motor. The roller suspender is connected with the bottom of the axle. The roller setting is set on the suspender. The roller suspender not only rotates with central axle, but also rotates under the friction of ring. The materials fall down from the hopper on the top of the machine to the clearance between roller and ring. Under the extrusion of the centrifugal force, materials will be crushed to pieces. The crushed materials will discharge naturally from the discharging valve. When the mill is working, blower will attract hot air in the mill and the cold air outside will swarm into because of negative pressure. So the heat coming from the working procedure will be taken away, which will lengthen the lifetime of the bearing and other spare parts. The air taken by the blower is sent into cloth dust cleaner, which will collect the fine powder. The purified air is discharged into the atmosphere.

When the system is working with wet method, blower and dust cleaner are not necessary.
