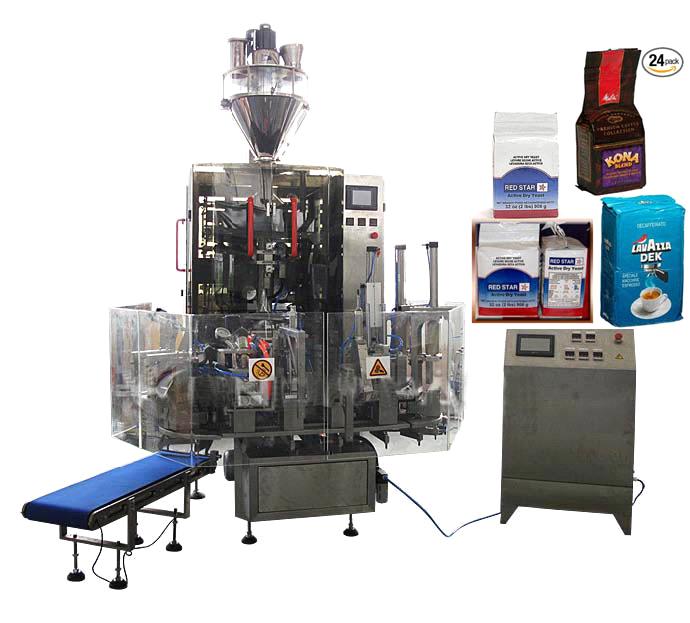

ZB1000 Automatic powder vacuum packaging machine

Detailed Product Description

The unit of machine including :DT Series Vacuum Elevator ,DT series horizontal type auger conveyor, second material Storage hopper ,CJS2000 series auger filling machine,VFS5000F vertical packaging,ZB1000 vacuum machine, dust collecting system and product conveyor. According to different material ( granule, powder )the bag can be designed to different size and shape(cuboids/Cube).The product seals well, so the product have a long
Value time and good looking. The unit of machine realized automatic material conveyor, filling , packaging ,reshaping ,vacuuming, sealing cutting ,product conveying , dust collecting by using the PLC and touch screen .The unit of machine is widely used in food, additive, tea ,medicine, chemical industries.

Features：
packaging speed ： 8～20bags/min
filling range： 100～2000g
bag size： 50x340x（80～260）（L*B*H）
filling accuracy： ±0.2～2%
air require： 0.6Mpa 0.65m3/min
reel outer diameter： Φ400mm
core inner diameter： Φ75mm
machine weight ： 2000Kg
power ： 5.5Kw 380V±10% 50Hz

Place of Origin:	Anhui in China
Model No:	ZB1000
Brand Name:	Zengran
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|100\|Year
Package:	wooden case
Delivery Time:	30days
