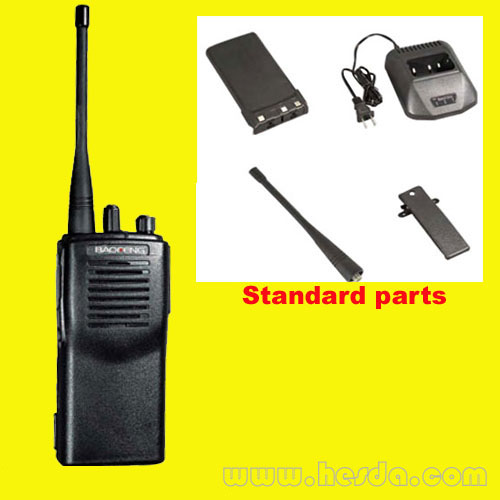

TK-3107 interphone

1、The computer edits the procedure and adjustment.
The holding machine edits the procedure and adjusts the index sign by connecting the personal computer proceeding.
2、16 memory frequency channels, adoption of phase-lock loop frequency synthesis, mini-computer control, fast menu, expedient operations.
3、The machine has the scanning function
4、With super-mini and beautiful design, and easy to operate without keyboard operation.
5、Electricity sparing functions, prolong using time.
6、Earphone/microphone rabbet, facility for listening and talking.


Specifications
Model
BF-2107（VHF）
BF-3107（UHF）
Frequency Range
136-174MHz
350-470MHz
Communication range
8-10Km
Power Output
5W
Channel Number
16
Audio Distortion
≤5%
Frequency Stability
5ppm
Max. Freq. Deviation
≤+-5KHz
Spurious Radiation
Better than 60dB
Adjacent-channel Power
Better than 60dB
Sensitivity
Better than 0.20μV
Squelch Sensitivity
Better than 0.15μV
Spurious Response Rejection
Better than 60dB
Adjacent-channel selectivity
Better than 60dB
Intermodulation Rejection
Better than 60dB
Standby Current
40mA(It is about 15mA in state of power save)
Transmitting Current
1.4A
Operation Voltage
7.2V


Export Markets
Whole world

Pricing
FOB

Payment Details
T/T

Min Order
50 PCS

Ship Date
3 days

Standard Met
ISO9001:2000

Place of Origin:	Fujian Quanzhou in China
Model No:	TK-3107
Minimum Order:	50 pcs
Supply Ability:	50000 pcs/month
Package:	export carton
Delivery Time:	5
