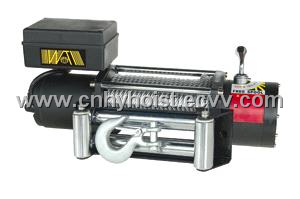

Electric Winch (WT-9000N)

Electric Winch (WT-9000N)

Contact Now

Detailed Product Description

Rated line pulling: 9000lbs (4082kgs) Single-line

Gear Ratio: 265:1

Gear train: 3-Stage Planetary

Clutch: Sliding Ring Gear

Motor: Permanent magnet DC 12V motor with 3.6hp/2.7kw output

Control: Remote switch, 9.8′( 3m) lead

Brake: Automatic In-The-Drum

Overall Dimension: (LxWxH) 22" x 6.3" x 10" (560 x 160 x 254mm)

Drum size: Diameter 2.5” (63.5mm) Length 8.82” (223mm)

Fairlead: Included

Cable length: 95ft of 21/64” diameter (29m of 8.3mm diameter)

Mounting Pattern: 10.00 ± 0.015” x 4.50 ± 0.010” (254 x 114.3mm)

Place of Origin:	Zhejiang in China
Model No:	WT-9000
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 10
Supply Ability:	Piece/Pieces\|500\|Month
Delivery Time:	30 days
