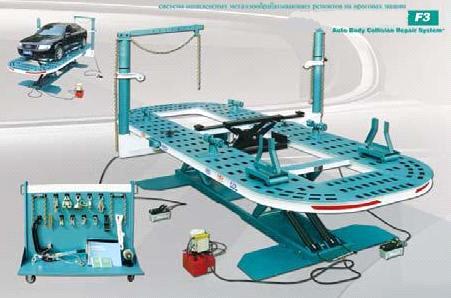

Auto Body Repair Machine

1. The platform is Manganese Steel.
2. The hydraulic towers can be moved freely alongside the platform and turn 360 degrees as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. Imported chains and plate tools are used flexibly and conveniently with long life. The entire series of tools accessories enable to do any misshape correction work.
4. U.S. hydraulic system imported with original packaging has powerful driving force, long life and low failure rate.
5. Laser measuring system is used to utmost convenience precise repairing.
6. Major clamps fix the auto quickly, firmly and accurately.
7. Applying parallel-connect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.
8. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure the position of shafts and holes.
9. Special design for lifting forces; in order to improve the service life of the oil cylinder, increase the oil cylinder diameter is increased and double oil cylinder lift at the same time. Under 15Mpa-17Mpa pressures, it can meet the lifting requirements of 3000KG auto weight.
10. Removable cross-members optional, shorter rack optional, lower lifting height optional.

Product Specification/Models
Working Platform Length: 6100 mm
Working Platform Width: 2180 mm
Working Platform Height: 300 - 1100 mm
Hydraulic System MWP: 70 MPa
Tower Hydraulic Cylinder Max. Lifting Force: 95 KN
Tower Pulling Range: 360 degrees
Inlet Air Pressure: 0.8 MPa
Max. Lifting Weight: 3000 KG
Equipment G.W.: 3600 KG
