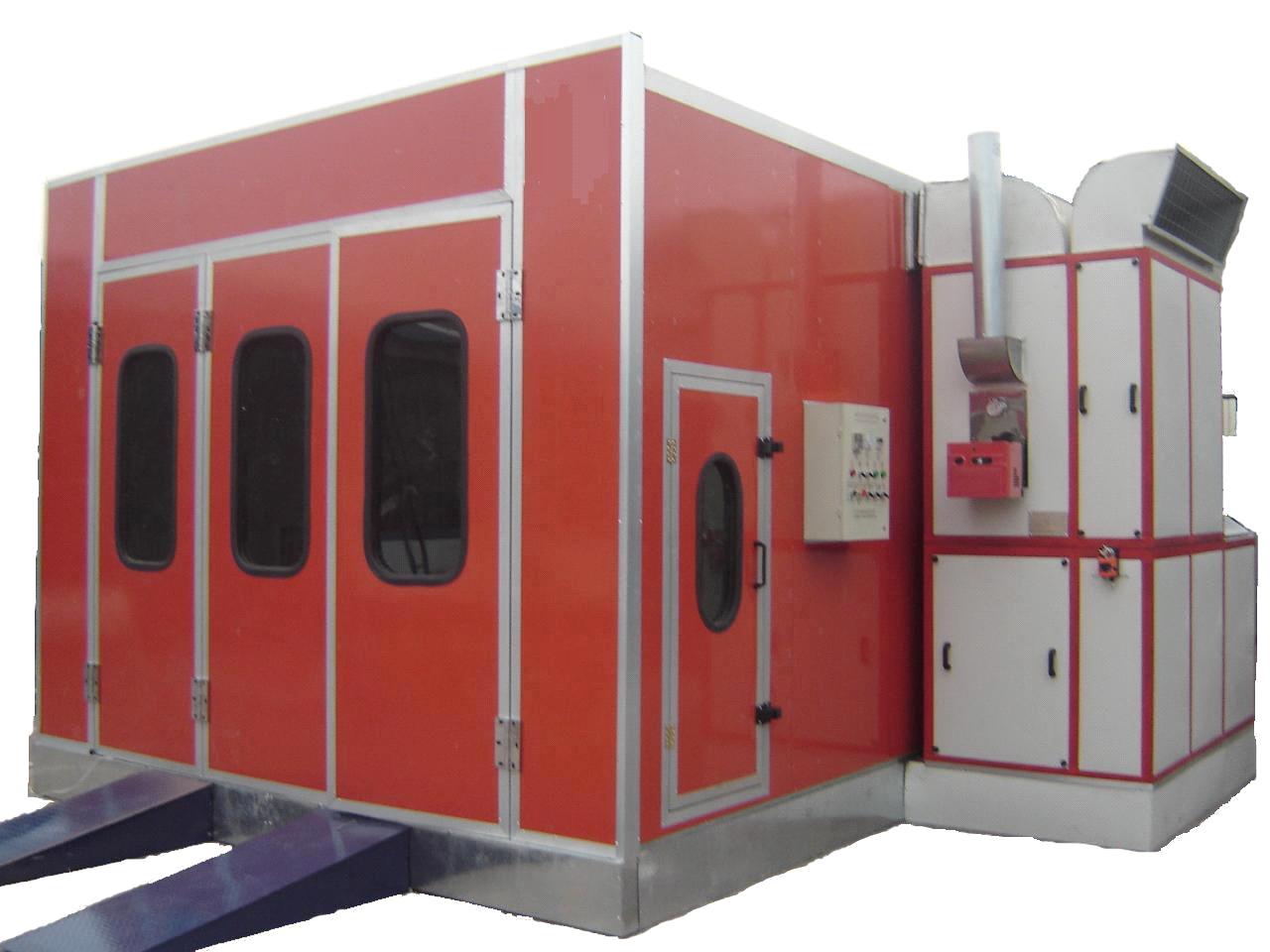

| Model No.: SB100 |
| Features: |
| 1. Wall material EPS foam plate. Rockwool, GPS materials available too, good for temperature keeping. |
| 2. Outside size (mm): (L) 7000 x (W) 4100 x (H) 3500 |
| 3. Inner size (mm): (L) 6900 x (W) 4000 x (H) 2750 |
| 4. Entrance dimensions (mm): (W) 3100 x (H) 2750 |
| 5. Air flow capacity: 20000 (m3 /h) |
| 6. Air Velocity: 0.3 (m/s) |
| 7. Working temperature: 60 ~ 80 ℃ |
| 8. Fuel oil consumption: 4 ~ 5 (kg/h) |
| 9. Power: 11.5KW |
| 10. Noise level: < 80dB |
| 11. Burner 140000 KCal and 260000 KCal optional |
| 12. Applicable vehicles: passenger cars and vans |
|
| Model No.: SB200 |
| Features: |
| 1. Wall material EPS foam plate. Rockwool, GPS material available too, good for temperature keeping. |
| 2. Outside size (mm): (L) 7000 x (W) 4100 x (H) 3500 |
| 3. Inner size (mm): (L) 6900 x (W) 4000 x (H) 2750 |
| 4. Entrance dimensions (mm): (W) 3100 x (H) 2700 |
| 5. Air flow capacity: 36000 ( m3/h) |
| 6. Air Velocity: 0.3 (m/s) |
| 7. Work Temperature: 60 ℃ |
| 8. Fuel oil consumption: 4 ~ 5 (kg/h) |
| 9. Power: 12.5KW |
| 10. Noise level: < 80dB |
| 11. Burner 140000 KCal and 260000 KCal optional |
| 12. Applicable vehicles: passenger cars and vans |
|
|
|
|
|
|
|
| Model No.: SB300 |
| Features: |
| 1. Wall material EPS foam plate. Rockwool, GPS material available too, good for temperature keeping. |
| 2. Outside size (mm): (L) 8700 x (W) 5850 x (H) 4300 |
| 3. Inner size (mm): (L) 8600 x (W) 4000 x (H) 3500 |
| 4. Entrance dimensions (mm): (W) 3100 x (H) 3500 |
| 5. Air flow capacity: 36000 (m3 /h) |
| 6. Air Velocity: 0.35 (m/s) |
| 7. Work Temperature: 60 ~ 80 ℃ |
| 8. Fuel oil consumption: 7 ~ 9 (kg/h) |
| 9. Power: 13KW |
| 10. Noise level: < 80dB |
| 11. Burner 140000 KCal and 260000 KCal optional |
| 12. Applicable vehicles: passenger cars and vans |
|
| Model No.: SB500 |
| Features: |
| 1. Wall material EPS foam plate. Rockwool, GPS material available too, good for temperature keeping. |
| 2. Outside size (mm): (L) 15150 x (W) 6900 x (H) 5400 |
| 3. Inner size (mm): (L) 15000 x (W) 5000 x (H) 4800 |
| 4. Entrance dimensions (mm): (W) 4000 x (H) 4800 |
| 5. Air flow capacity: 80000 (m3 /h) |
| 6. Air Velocity: 0.4 (m/s) |
| 7. Work Temperature: 60 ~ 80 ℃ |
| 8. Fuel oil consumption: 25 ~ 30 (kg/h) |
| 9. Power: 30KW |
| 10. Noise level: < 120dB |
| 11. Burner 140000 KCal and 260000 KCal optional |
| 12. Applicable vehicles: passenger cars and vans |
|
|
|
|
|
|
|
| Model No.: SBS200 |
| Features: |
| 1. 24" fan and 3 phase-2hp motor with belts, pullies and sheave |
| 2. 20'3" long x 12'9" wide x 8'4" high - interior dimensions |
| 3. 23' long x 13' wide x 8'10" high - exterior dimensions |
| 4. 8'4" high x 10' wide filtered entrance doors |
| 5. All 18 gauge galvanized steel construction panels |
| 6. All hardware, fasteners and sealants |
| 7. 16-20" x 20" intake and exhaust filters |
| 8. 6 - 48" 4-tube light fixtures with clear tempered glass |
| 9. Personnel door |
| 10. Assembly instructions/permit package |
|
| Model No.: SBS300 |
| Features: |
| 1. 34 in. fan and 3-phase 3hp motor with belts, pullies and sheave |
| 2. Interior dimensions - 26 ft. 6 in. long x 14 ft. wide x 9 ft. high |
| 3. Exterior dimensions - 26 ft. 9 in. long x 14 ft. 3 in. wide x 9 ft. 11/2 in. high |
| 4. 9 ft. high x 10 ft. wide entrance doors |
| 5. 2 light fixtures in rear of booth |
| 6. All 18 gauge galvanized steel construction |
| 7. All hardware, fasteners, and sealants |
| 8. 20 in. x 20 in. intake and exhaust filters |
| 10. 10 - 48 in. 4-tube light fixtures with clear tempered glass |
| 11. One personnel door with clear tempered glass |
| 12. Extra long 26 ft. 6 in. working length |
