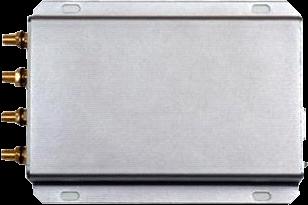

MR701(ISO/IEC15693 standards)

 Product  Presentation

(1)To be a reading and writing equipment with electronic label from TI,PHILIPS,INFINEON,and FUJISU, which matches the high frequency industry of the ISO/IEC15693 standards
(2)To own the high successive rate of reading and writing
ability, adopting the advanced calculative way with electronic label processing collision
(3)To read 30~50 pieces of labels per second through the typical model label
(4)To connect directly the 50Ω RFID antenna through the SMA connector, with reading range  up to 90cm and more
(5) To be designed with low consumption, and used by single power supply
(6)To own the 4 watts power of radio frequency, to choose the power allotter, and to support multi antennas
(7) To provide the dynamic state connection database (DLL), with RS232 or RS485 connector
(8) To support twice developments
(9)To support the network from two and more readers, with 8digits address (0~254, 255 for broadcast )
(9)To support a general input and two general outputs
(10)With relay inside
(11)dimension :215X138X39mm
