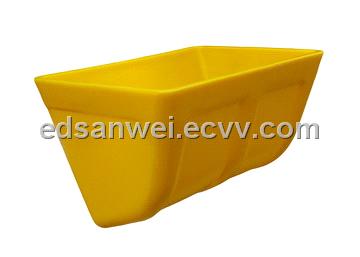

Elevator Bucket



It’s kind of medium deep pattern bucket. In most cases, buckets stopped in use are caused by heavy abrasion on the bucket mouth and the tearing at the bucket mouth or the bolt fitting due to collision in the running. Our D bucket design will relieve such situation in use and extend the life span of the bucket. The unique design has made an appropriate thickness reduction on the bottom which requires a lower intensit6y, and the saved raw material will be used to increase the thickness of the bucket mouth and the area around bolt holes. In this way, the bucket has higher intensity and can become more wear-resistant without increasing the total weight. This design has been approved by test and widely used by leading conveying equipment manufactures in North America.



Usage:

1. Suitable for high speed centrifugal high-speed centrifugal discharge.

2. Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.

3. Recommended elevator velocity <=2.5m/s

4. Recommend using”Z-Y+10%” as usable capacity for engineering purpose.
