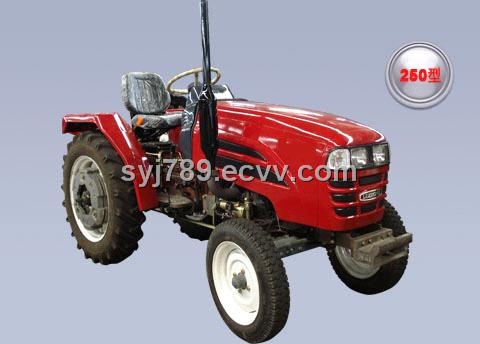

Tractor (LZ250)

Detailed Product Description

Model			LZ250
Type			2WD Wheeled Type
(mm)Dimensions of Tractor	Length (to front ballast)		2890
	Width		1470
	Height (to the exhaust vent)		1900
	Tread	Front Wheel	1300 Fixed or 1100~1300 Adjusted
		Rear Wheel	1300 Fixed or 1300~1350 Adjusted
	Axle Base		1710
	Min. Ground Clearance		347.5
Structure weight (kg)			1040
Ballast weight (kg)	Front ballast		56
	Rear ballast		112
Rated traction force (kg)			438
Engine	Model		385
	Type		Vertical, 3-Cylinder, Water Cooled and 4-stroke
	Rated Power(kw)		18.3
	Rated speed (r/min)		2400
	Fuel		Diesel
Tyre	Front Wheel		5.00-16
	Rear Wheel		9.5-24
Clutch			Dual-stage clutch
Steering			Power steering
Transmission Type			8+2 or 8+8 with shuttle gearshift or 16+4 with creeper shift
Suspension Type			3-point links
PTO	Type and Rev		Semi-independent Type 540/1000
	Spline Size		F35 Rectangle Spline with 6 teeth
Structure and specification are subject to change without notice.

Place of Origin:	Shandong in China
Model No:	LZ250
Brand Name:	Luzhong
Other Price Terms:	To be negotiated by both parties.
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|100\|Week
Package:	Packed with iron crate or in CBU mode as buyer's option.
