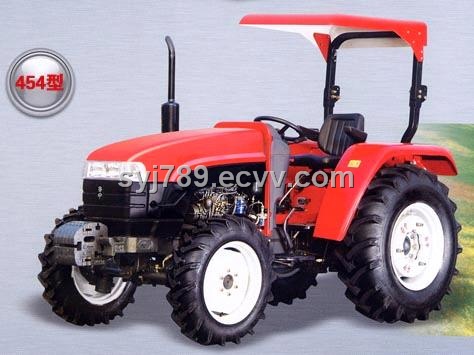

Tractor (LZ454)

Detailed Product Description

Model			LZ454
Type			2WD Wheeled Type
(mm)Dimensions of Tractor	Length(With front ballast)		3835
	Width		1620
	Height(to the exhaust vent)		2135
	Tread	Front Wheel	1300 or 1200~1500 Adjusted
		Rear Wheel	1300 Fixed or 1200~1500 Adjusted
	Axle Base		1910
	Min. Ground Clearance		410
(kg) Structure weight			1665
Ballast weight (kg)	Front ballast		112
	Rear ballast		100
Rated traction force (kg)			850
Engine	Model		495
	Type		Vertical, 4-Cylinder, Water Cooled and 4-stroke
	Rated Power(kw)		33
	Rated speed (r/min)		2400
	Fuel		Diesel
Tyre	Front Wheel		6. 00-16
	Rear Wheel		12. 4-28
Clutch			Dual-stage clutch
Steering			Power steering
Transmission Type			8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift
Suspension Type			3-point links
PTO	Type and Rev		Semi-independent Type 540/1000
	Spline Size		F35 Rectangle Spline with 6 teeth
Structure and specification are subject to change without notice.
