Detailed Product Description

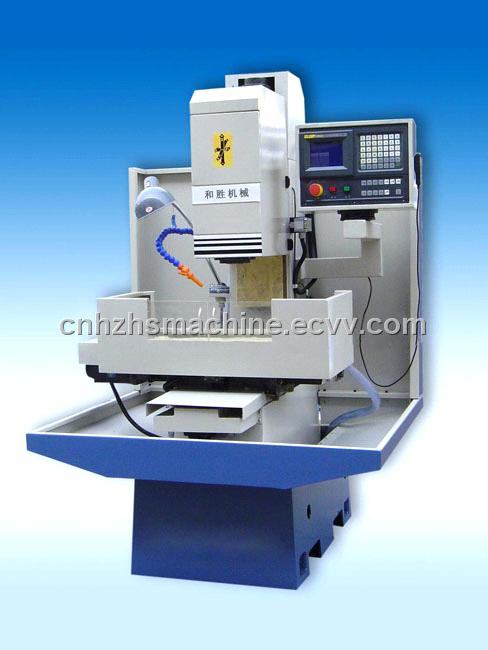

CNC Vertical Milling Machine
Model No.: HS-4025
Range of spindle: 150-3000rpm
Main motor: 2kw
Table size(L×W): 600×300mm
Longitudinal travel(X axis): 400mm
Cross travel(Y axis): 250mm
Vertical travel(Z axis): 250mm
Processing capacity: 250mm
G.W: 1500kg
Spec. of CNC Controller System
Controller Type: KND 100M
Positioning accuracy: 0.005mm
Repeatability: 0.005mm
Features and functions:
1. Taiwan machining center structure is introduced and high precision, good stability and wear resistance.
2. Headstock, table, column etc all for high-quality resin sand casting; table surface, tail through , high hardness, wear resistance. Imported high-precision double nuts rolling bearing nut, and high accuracy.
3. X, Y, Z axes servo motor-driven, multi-axis can be linked.
4. P4-class rolling bearings and spindle bearings, high precision and high-durability.
5. Lubrication system for automatic oil pump centralization lubrication (manual lubrication, optional)
| Place of Origin: | Zhejiang in China |
| Model No: | HS-4025 |
| Brand Name: | HEROIC |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Minimum Order: | Set/Sets 1 |
| Package: | Wooden Pallet or Wooden Case, and then in container. |
