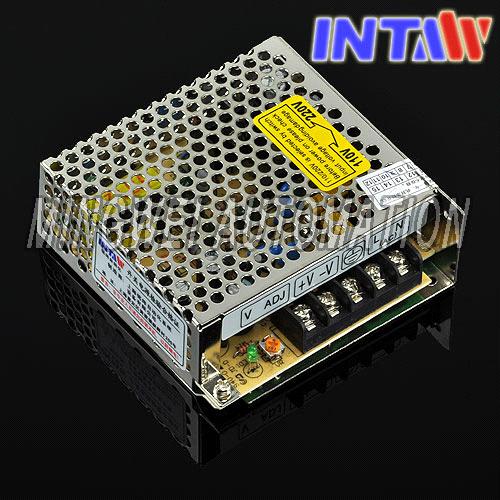

Switching Power Supply S-15 Series

Switching Power Supply S-15 Series S-15

Switching Power Supply S-15 Series

  Prev Product Contact Now Next Product

Detailed Product Description

15W Single Output Switching Power Supply S-15 series
Features:
AC input range selected by switch
Protections: Short circuit/Over load
Cooling by free air convection
100% full load burn-in
Fixed switching frequency at 37KHz
Lost cost
High reliability
MODEL S-15-5 S-15-12 S-15-24
DC VOLTAGE  5V 12V 24V
RATED CURRENT 3A 1.3A 0.7A
CURRENT RANGE 0 ~ 3A 0 ~ 1.3A 0 ~ 0.7A
RATED POWER 15W 15.6W 16.8W
RIPPLE & NOISE (max.) 50mVp-p 50mVp-p 100mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 21.6 ~ 26.4V
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±0.5% ±0.5%
SETUP, RISE, HOLD TIME 200ms, 100ms, 30ms at full load
VOLTAGE RANGE 85 ~ 132VAC / 170 ~ 264VAC selected by switch          240 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 65% 68% 72%
AC CURRENT 0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT (max.) COLD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT <0.5mA/240VAC
OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is reoved
WORKING TEMP. -10 ~ +60oC
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85oC ,10 ~ 95% RH
TEMP. COEFFICIENT ±0.02%/oC (0 ~ 50oC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS Design refer to UL1012
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Design refer to FCC Part15 J Conduction Class B
MTBF 522.1K hrs min. MIL-HDBK-217F (25oC)
DIMENSION 99*97*36mm (L*W*H)
PACKING 0.30Kg; 60pcs/19.84Kg/0.0326CBM
Place of Origin:Zhejiang in China
Model No:S-15
Brand Name:INTMW
Product Name:Switching Power Supply
Payment Terms:T/T(Bank Transfer),
Minimum Order:Piece/Pieces 500
Supply Ability:Piece/Pieces|50000|Month
Package:0.30Kg; 60pcs/19.84Kg/0.0326CBM
Delivery Time:7~15days
