Digital Thermostat

Detailed Product Description

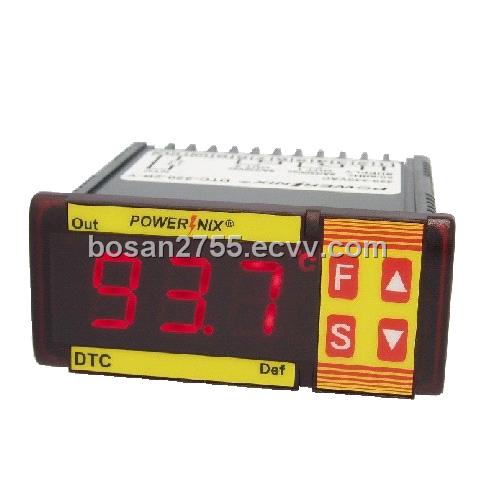

"DTC" Digital Temperature Controller

General Feature :

- High precision digital indication with 0.1C / 0.1F for better readability.

- Wide temperature measuring range.

- High performance and durable thermoplastic materials housing.

- Water and humidity proof on front panel.

- High working temperature up to 70C ambient.

- Heating / Cooling control possible.

- Cooling control with defrost cycling.

- Defrost control by stop compressor OR by heater / hot gas.

- Internal buzzer for alarm application.

- Configuration of parameter via smart card.

General Specifications :

Control temperature range : -40C ~ +150C / -40F ~ + 302F

Maximum ambient temperature : 70C

Input power : 12V~24Vac/dc, 110Vac, 220Vac, 50/60Hz

Input Sensor : NTC

Mounting : Panel mount with locking clip.

Indication : 3 digits 7 segments Red LED with output function indication.

Control Accuracy : ≦ ± 0.5% of FS

Indication resolution : 0.1C / 0.1F ＜ 99.9C

Alarm : Internal buzzer

Protection : IP65

Security : Password locking
