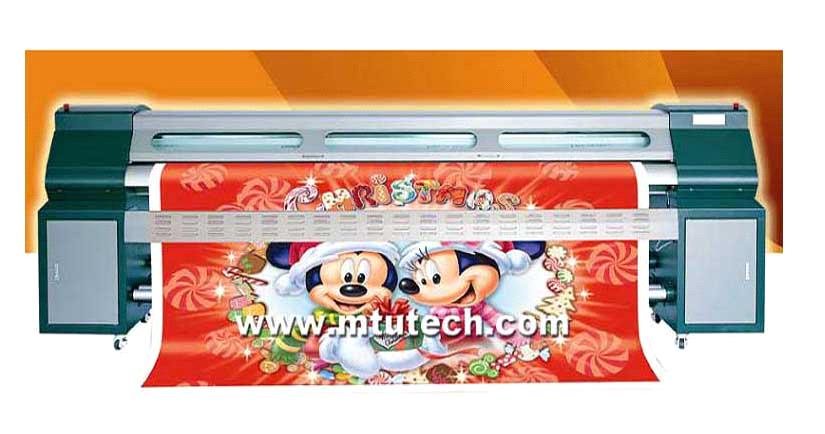

Solvent Printer (SK-3200)

Detailed Product Description

3. 2m Series Solvent Printer:

Model		SK3208H	SK3206H	SK3204H
Print Head		Drop on demand Piezo Head(SPT510-35PL) 720dpi
Number of Print Head		8 Heads(Double 4 Color)	6 Heads (6 Color)	4 Heads(4 Color)
Maximum Print Width		3, 200mm(125. 98”)
Print Speed*		101m^2/hr 1Pass	49m2/hr 3Pass	49m^2/hr 3Pass
		76 m^2/hr 2Pass	39m2/hr 4Pass	39m^2/hr 4Pass
		51m^2/hr 3Pass	27m2/hr 6Pass	27m^2/hr 6Pass
		26m^2/hr 4Pass	14m2/hr 8Pass	14m^2/hr 8Pass
Media	Max. Width	3, 300mm(129. 92')
	Max. Weight	90kg
	Type	Frontlit, Backlit, Vinyl , Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper…
	Thickness	4mm(Max. )
Heating System		Pre/Post Heater, Cooling Fan System
Auto Media Feeding& Take-up System		Equipped
Ink	Type	Solvent, Eco-Solvent
	Capacity	1L or 5L per Color Main Tank
Auto Cleaning System		Positive Pressure Cleaning, Anti-Clogging Flash Function& Capping System
Print Interface		Optical Fiber
Power Specification		AC 220V/230V 50Hz/60Hz 2000W
Operational Environment		Temperature：20°C-28°C Humidity：40%-60%
Compatible RIP Software		Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maitop
Dimension& Weight	Machine	L4, 440mm X W770mm X H1, 280mm 430KG
	Packing	L4, 950mm X W920mm X H1, 540mm 710KG

2. 5m Series Solvent Printer:

Model		SK2506H	SK2504H
Print Head		Drop on demand Piezo Head(SPT510-35PL) 720dpi
Number of Print Head		6 Heads( 6 Color)	4 Heads(4 Color)
Maximum Print Width		2, 500mm(98. 42”)
Print Speed		44m2/hr 3Pass	44m2/hr 3Pass
		34m2/hr 4Pass	34m2/hr 4Pass
		25m2/hr 6Pass	25m2/hr 6Pass
		13m2/hr 8Pass	13m2/hr 8Pass
Media	Max. Width	2, 600mm(102. 36')
	Max. Weight	90kg
	Type	Frontlit, Backlit, Vinyl , Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper…
	Thickness	4mm(Max. )
Heating System		Pre/Post Heater, Cooling Fan System
Auto Media Feeding& Take-up System		Equipped
Ink	Type	Solvent, Eco-Solvent
	Capacity	1L or 5L per Color Main Tank
Auto Cleaning System		Positive Pressure Cleaning, Anti-Clogging Flash Function& Capping System
Print Interface		Optical Fiber

1. 8m Series Solvent Printer:

Model		SK1806H	SK1804H
Print Head		Drop on demand Piezo Head(SPT510-35PL) 720dpi
Number of Print Head		6 Heads( 6 Color)	4 Heads(4 Color)
Maximum Print Width		1, 800mm(98. 42”)
Print Speed		40m2/hr 3Pass	40m2/hr 3Pass
		31m2/hr 4Pass	31m2/hr 4Pass
		21m2/hr 6Pass	21m2/hr 6Pass
		12m2/hr 8Pass	12m2/hr 8Pass
Media	Max. Width	1, 900mm(74. 80”)
	Max. Weight	90kg
	Type	Frontlit, Backlit, Vinyl , Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper…
	Thickness	4mm(Max. )
Heating System		Pre/Post Heater, Cooling Fan System
Auto Media Feeding& Take-up System		Equipped
Ink	Type	Solvent, Eco-Solvent
	Capacity	1L or 5L per Color Main Tank
Auto Cleaning System		Positive Pressure Cleaning, Anti-Clogging Flash Function& Capping System
Print Interface		Optical Fiber
Power Specification		AC 220V/230V 50Hz/60Hz 2000W
Operational Environment		Temperature：20°C-28°C Humidity：40%-60%
Compatible RIP Software		Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maitop
Dimension& Weight	Machine	L3, 040mm X W770mm X H1, 280mm 260KG
	Packing	L3, 190mm X W920mm X H1, 540mm 540KG
