UV Printer

Detailed Product Description

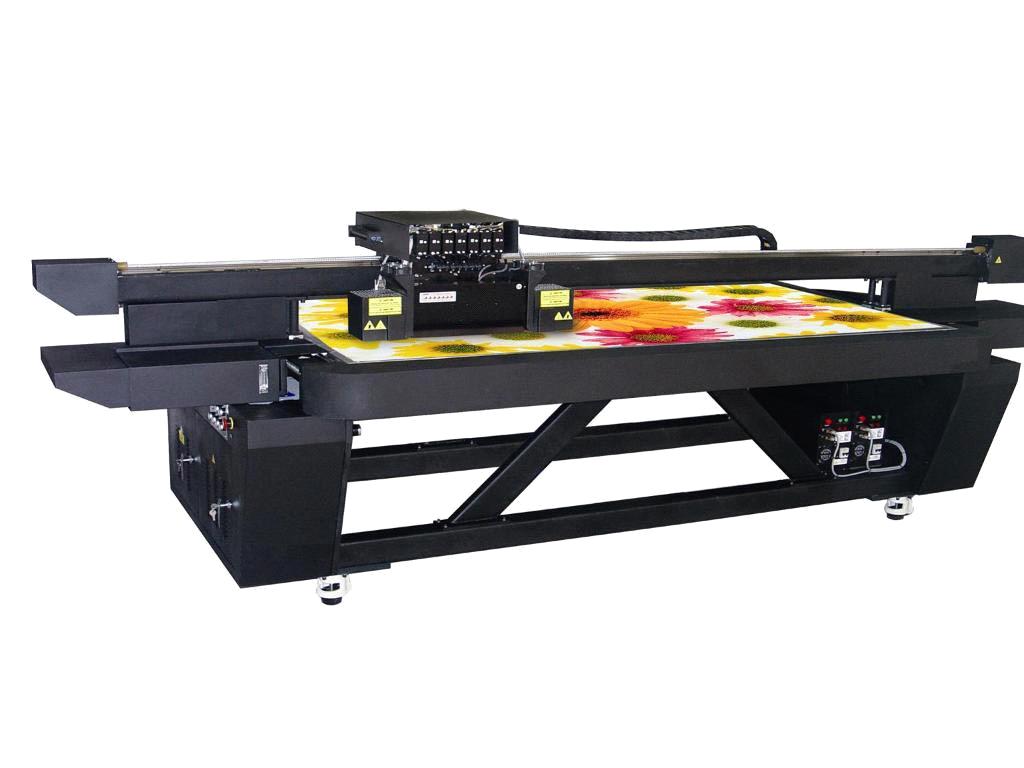

High Resolution UV Flat Bed Printer Special Printing On Glass:

Meitu Printer software has powerful function(include in Rip software). We have ten years experience on this area, and our software can compatible with other company's rip files.

▲Negative pressure ink supply system, it make ink output stably.

▲Feed in detected device to ensure every pass is correct.

▲Double servo motor for X and Y axis movement to make high precise printing.

▲Even if the material is very heavy, Flatbed printer can move smoothly.

▲Super Wide board printing, it can make big size hard board(glass) printing easy.

	MT2407-DL	MT2406-GL
Print Head	7 pieces Konica 512/14pl	6 pieces Konica 512/14pl
Print Size	2. 40m*1. 20m	2. 40m*1. 20m
Resolution	960dpi*1440dpi	960dpi*1440dpi
Standard Output	20 ㎡/h	20 ㎡/h
Color	CMYK Lm Lc W	CMYK Lm Lc
Shade of Color	16. 7 million	16. 7 million
Ink	UV Ink	UV Ink
Media	Rigid boards include corrugated, foam core, gatorboard, sintra (PVC), Ceramic tiles, glass, plexiglass, wood, sheet metal, etc. ; Roll to roll include paper, vinlys, adhesive back vinyls, fabrics, etc.
Working Environment	Voltage: 220V(±10%) 50Hz, ≤15A Temperature: 20-27℃ Humidity: 40%-65%

	MT2407-GL(L)	MT2406-GL(L)
Print Head	7 pieces Konica 512/14pl	6 pieces Konica 512/14pl
Print Size	2. 40m*5m	2. 40m*5m
Resolution	960dpi*1440dpi	960dpi*1440dpi
Standard Output	20 ㎡/h	20 ㎡/h
Color	CMYK Lm Lc W	CMYK Lm Lc
Shade of Color	16. 7 million	16. 7 million
Ink	UV Ink	UV Ink
Media	Rigid boards include corrugated, foam core, gatorboard, sintra (PVC), Ceramic tiles, glass, plexiglass, wood, sheet metal, etc. ; Roll to roll include paper, vinlys, adhesive back vinyls, fabrics, etc.
Working Environment	Voltage: 220V(±10%) 50Hz, ≤15A Temperature: 20-27℃ Humidity: 40%-65%
