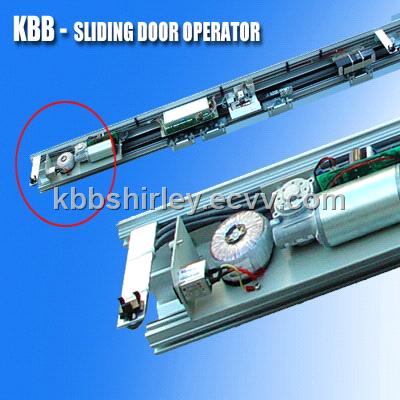

Automatic Sliding Door Operator

 Automatic sliding door electronic control system

1

Automatic sliding door drive unit

1

100W ,with speed & position feedback, PWM drive

2

Decelerated gear mechanism

1

SG80K RTAIO

3

Automatic sliding door control unit

1

PHILIPS control chip , modularization design

4

Automatic sliding door detecting sensor

2

BEA microwave/ infrared anti-jamming

5

PSA control unit

1

50m wire-control  , malfunction indication

Automatic sliding door mechanism system

1

Supporting rails

1

High strength,  7mm

2

Anti-friction rails

1

Special nylon material, wearable, noiseless , self-lubricated

3

Glass holder

4

Zincification , adjustable

4

Timing belt holder

2

Zincification

5

Toothed timing belt

1

Wearable , anti-dilate

6

Reverse pulley

1

Zincification

7

Stop piece

4

Zincification , absorption

Optional

1

Double drive unit

1

100W  with speed & position feedback,  PWM drive

2

Safety beam (photocell)

1

BEA  infrared anti-jamming

3

Electro-mechanical lock

1

24V bi-stability control , long lifetime

4

UPS back up battery

1

24V , maintain continuous operation within 30 minutes.

5

Operator cover

1

Aluminum alloy  6063

6

Underneath cover

2

Black plastic material

7

Rubber foldout

4M

Special rubber,  noiseless, high toughness
