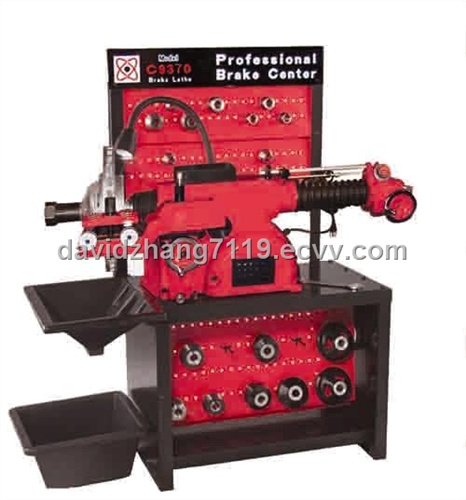

Brake Lathe (C9370)

Detailed Product Description

* Spindle Travel 9. 875" / 251mm

* Spindle Speed 70，80， 118 RPM

* Spindle Feed Speed Min 0. 002 Inch Per Revolution / 0. 05 Mm/Rev

* Max 0. 02 Inch Per Revolution / 0. 5 Mn/Rev

* Cross Feed Speed Min 0. 002 Inch Per Revolution / 0. 05 Mn/Rev

* Max 0. 01 Inch Per Revolution / 0. 25 Mn/Rev

* Handwheel Graduations 0. 002" / 0. 05mm

* Rotor Diameter 7" / 180mm - 18" / 457mm

* Rotor Thickness 4" / 102mm

* Drum Diameter 6" / 152mm - 28" / 711mm

* Drum Depth 9. 875" / 251mm

* Motor 1PH 220VAC 50/60Hz 3PH 380VAC 50/60Hz

* Gross Weight: 400kg

* Dimension 1100X1070X1140mm

Place of Origin:	Shaanxi in China
Model No:	C9370
