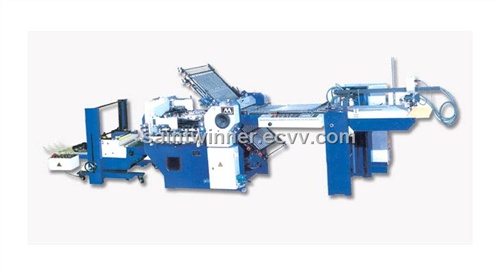

Automatic Combination Folding Machine (ZYHD660)

Features
Four buckle plates and two knives can carry out parallel folds and cross folds, and can be combined flexibly at request to realize various folding patterns;
Each buckle plate is with swing deflector;
Two upper buckle plates are with crank to facilitate easy change of swing deflector;
High performance sheet-separating feeder-head;
Automatic pile height control device;
Photoelectrically-controlled knives realize high speed, superior reliability;
Precise, nonskid, wearproof, Steel-PU folding roller;
High precision helical gears guarantee perfect synchronization and low noise;
Programmable Logical Controller and frequency-change speed regulator in electric control system;
Double sheet detector and jammed sheet detector monitor sheet travel and pause transmission automatically while such problems occur;  Scoring, perforating, and slitting at request;
Touch screen visualizing all operating functions in a simple and clearly arranged way with malfunction display facilitates parameter input and trouble shooting;
Rulers and digital readout facilitate adjustment, and with several malfunction detectors;
Production counting and batch counting
Press delivery improves signature quality and reduce labour intensity;  Optional folding knife unit realizes 32-page, inward or outward fold;  Optional sound-hood.

Technical Data

Max.Sheet size 660 x 1040 mm
Min.Sheet size 150 x 200 mm
Sheet range 40 - 180 g/m2
Max.Folding roller speed 160 m/min
Max.Folding knife cycle rate 250 stroke/min
Max.Pile height 650 mm
Machine power 7.2 kw
Machine net weight 1900 kg
Overall dimensions (LxWxH) 5680 x 1560 x 1630 mm
