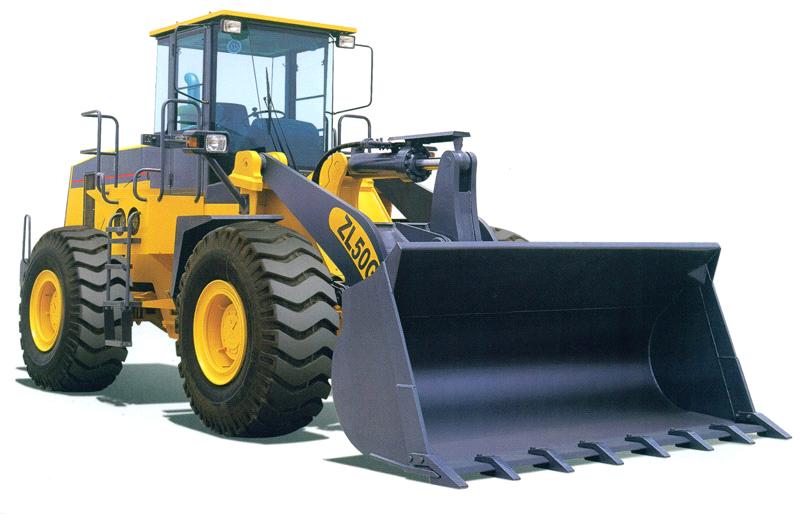

Wheel Loader ( ZL50G)

Detailed Product Description

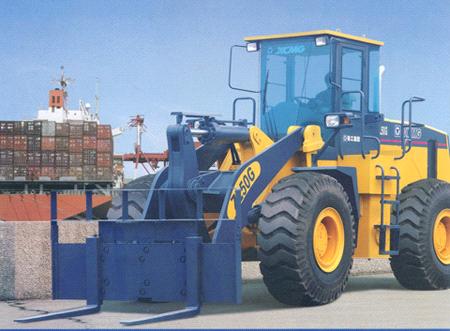

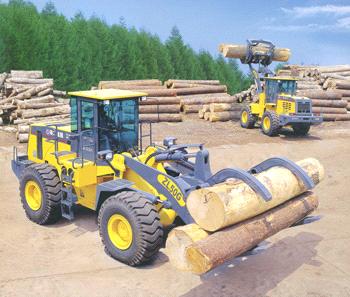

Side dump bucket, Log fork, Clamp loader for ZL50G.

Specification Model		ZL50G
Rated load (kg)		5000
Raising time (s)		<6
Total cycling time (s)		<11
Max. Traction force (kN)		145
Articulation angle (° )		35
Min. Turning radius (mm)		6400
Gradeability (° )		28
Wheel base(mm)		3300
Track (mm)		2200
Speed
1st(F/R) (km/h)		11.5/16.5
2nd(F/R) (km/h)		37
Engine model		Steyr engine
Tyres		23.5-25
Clamp	Min. Clamping diameter (mm)	450/800
	Dump clearance (mm)	3230
	Dump reach (mm)	1845
	LWH (mm)	8414800460
	Operating weight (t)	18
Side dump	Bucket capacity (m³⁾	2.3
	Dump clearance (Downward/side) (mm)	3025/3957
	Dump reach(Downward) (mm)	1192
	Max.Breakout force (kN)	172
	(LWH) (mm)	822730003460
	Operating weight (t)	19.2
Bucket	Bucket capacity (m³⁾	3.0
	Dump clearance (Downward/side) (mm)	3090
	Dump reacn (downward) (mm)	1130
	Max. Breakout (kN)	170
	(LWH) (mm)	811030003460
	Operating weight (t)	18
