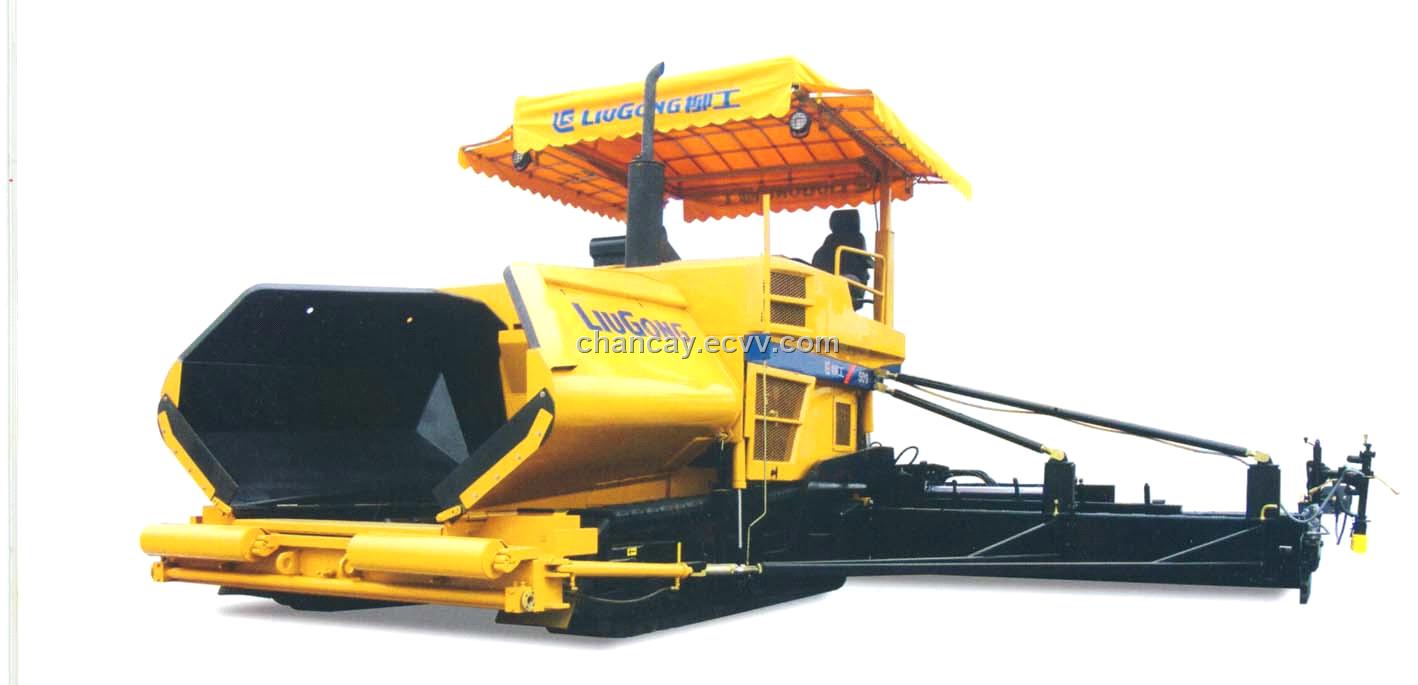

Asphalt Paver (CLG507)

Prev Product

Detailed Product Description

Asphalt Paver with 7.5 m max paving width and 300 mm paving thick.

Model	CLG507
Rated power (kw) (r/min)	135 / 2200
Fuel oil tank capacity (L)	280
Electrical system (v)	24
Max paving width (basic sect) (m)	7.5 (2.5)
Theory productivity (t/h)	600
Max paving thick (mm)	300
Working speed (m/min)	0 - 20
Speed (km/h)	0 - 3.0
Track tread system (mm)	3085 * 305
Hopper bucket capacity (t)	16
Creeping capacity (%)	20
Shifting from paving to transport speed (m/min)	0 - 27
Helix working swing speed (r/min)	0 - 80
Helix dia (mm)	￠ 420, ￠ 360
Operating weight (t)	- 23
Dimensions (mm)	6310 * 2590 * 3830
Paving level-up (mm/3m)	3
Sidelong error (%)	±0.02
Working hammer frequency (HZ)	0 - 30double working hammer
Libration frequency (HZ)	0 - 65
Paver plate mode	High density
Paver length mode	Mechanical
