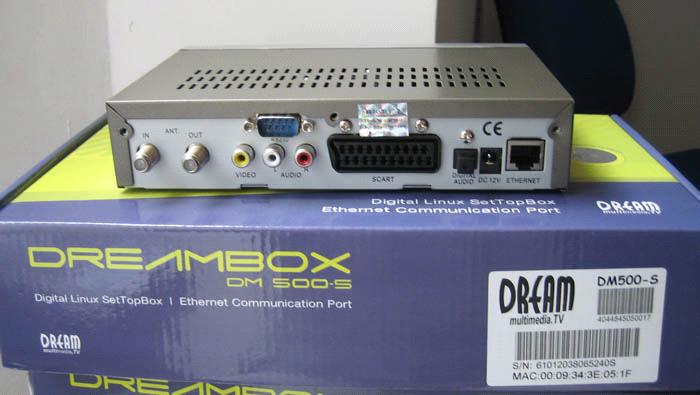

DVB500

- 250 MHz PowerPC Processor
- Linux Operating System
- 2 LED status
- MPEG-2 Hardware decoding, DVB-S
- 1 x Smartcard-Reader
- 1 x Scart-interfaces (RGB, FBAS or S-Video)
- V.24/RS232 Interface
- 10/100Mbit compatible Ethernet Interface
- analog modem
- S/PDIF Interface for digital bit stream out (AC-3)
- 32 MByte Flash, 96 MByte RAM

- unlimited channel lists for TV/Radio
- channel-change time < 1 second
- automatic service scan
- directly bouquet-lists
- EPG (electronic program guide)
- Videotext Decoder
- multiple LNB-Switching control (DiSEqC)
- OSD in many languages and skin-support
- extern12V power supply



Frequency Range 950 …. 2150 MHz
Signal Level - 65 dBm …. - 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8
Roll-off Factor 35 %
Demultiplexing according ISO 13818-1
