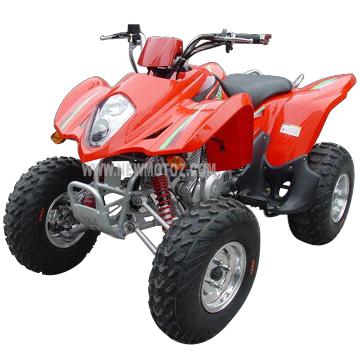

* Model:MA300E-L
* Colors : Black | Blue | Green | Red | Yellow
* KEY FEATURES:
* 300cc engine, 4 stroke, chain drive, 5 forward gear, rear disc brake,alloy rim ,with EEC homologation
* Specifications
* Engine Type 300cc, air-cooled, 5 forward gear
* Final Drive chain drive
* Bore x Stroke(mm) 78x61.2mm
* Piston Displacement(cc) 292.5cc(GN300)
* Compression Ratio 8.9:1
* Max Power(kw/r/min) 12
* Starter Sytem electric
* Lubricaiton wet sump
* Trasmission 5 forward gear with reverse
* Final Ratio 2.667(40:15)
* Overall LxWxH(mm) 1735x1037x1050
* Packing LxWxH(mm) 1920x1140x1200
* Wheel Base(mm) 1117
* Seat Height(mm) 122
* Ground Clearance(mm) 762
* Load capacity(kg) 165
* Brake(Front/Rear) disk/disc
* Tire, Front AT21x7-10
* Tire, Rear AT21x10-8
* Ignition Type CDI
* Fuel Tank Capacity(L) 7.5
* Front Suspension double wishbone/7.1"
* Rear Suspension Swing Arm/7.1"
* Max Speed(km/h) 75
* NW(kg) 220
* GW(kg) 250
* Quantity of Loading 12pcs /20'ft;24pcs /40'ft,36pcs/40'Hq
Mini Quad Bike, Mini Dirt Bike, Pocket Bikes, Mini Quad Bikes, Mini Dirt Bikes, mini quadbikes, Mini dirtbike, Mini Quads
| Place of Origin: | Zhejiang in China |
| Model No: | MA300E-L |
