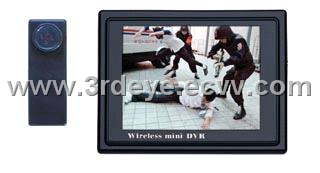

Wireless Button Camera with DVR(TE-835)

Prev Product

Next Product

Detailed Product Description

*Wireless transmission provides real time video on DVR to view effect as you record;
*Small size of transmission camera hides under a normal button on clothing;

* Night vision available

*3.5"TFT LCD screen with up to 800X600 resolution;
*Video Format: Mpeg-4,AVI (800 or 320 @ 30fps) MP4,3GP;
*Memory: built-in flash :2GB~8GB; support SD card 1GB to 16GB;
*420TV line provides very clear & bright image;
*4 channels available to avoid possible interference;
*Built-in antenna and rechargeable Li-battery;
*100m transmission distance without blocks

Specification:

Modulation Mode		FM
Antenna Type		Hidden
Unobstructed Effective Range		100m(Without Block)
Operating Temperature		0℃~ +50℃ / +14℉~ +122℉
Storage Temperature		-20℃ ~ +60℃ / -4℉ ~ +140℉
Operating Humidity		85%RH
CAMERA	Transmission Frequency	ISM 2,400MHz~ 2,483MHz CH1 CH2 CH3
	Audio subcarrier frequency	6.0Mhz;6.5Mhz
	Imaging Sensor Type	CMOS
	CMOS Total Pixels	628×582(PAL)/ 510×492(NTSC)
	Horizontal Resolution	420 TV Lines
	View Angle	62°
	Minimum Illumination	0.05 Lux / F1.5
	Transmission Power	10mW
	Power Supply	DC 5V 110mA
	Battery Performance	Li-ion Battery
	Battery Capacity	220 mAh
	Charge time	40 minutes
	Working Time	2 hours
	Dimensions( L X W X H)	57mm X20mm X 11.5mm
	Weight	17g
RECEIVER	Receiving CH	CH1~CH4
	Sensitivity	-92dB
	LCD	3.5 inches TFT
	AV out	NTSC / PAL
	Resolution	640480 / 320240
	Video compress	MPEG-AVI 30fps
	Play format	RM / RMVB / 3GP / MP4 / FLV / AVI / ASF / WMV / DAT / VOB / MPG
	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Play format	MP3 / WMA / AMR / AAC / FLAC / APE
	Speaker	0.6W
	File format	JPG/JPEG
	FLASH	2GB-8GB （default 2GB）
	Outer SD card	TF card 1GB-16GB( optional purchase)
	IBM-PC	Windows 2000、XP & VISTA
	Port	HI-USB 2.0
	Language	Multiple languages
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 1200Mah
	Wireless record	≥2.5 hours
	Video record	≥5 hours

Place of Origin:	Guangdong in China
Model No:	TE-835
Brand Name:	3rd eye
Other Price Terms:	FOB shenzhen
Payment Terms:	T/T(Bank Transfer),Western Union,PayPal,
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|2000\|Month
Package:	box package
Delivery Time:	sample is ready
