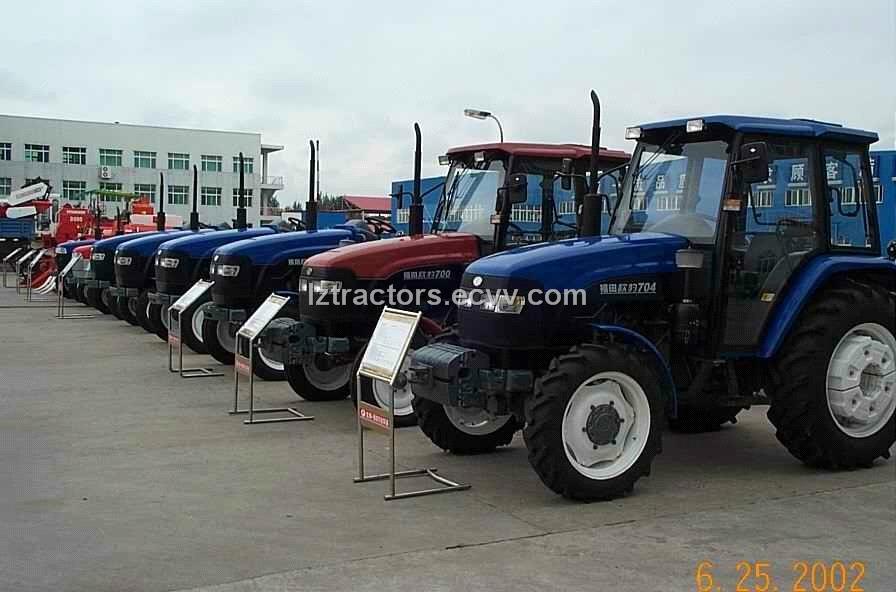

Foton Tractors

Detailed Product Description

MODEL		FT650	FT654
TYPE		4×2	4×4
OVER SIZE (mm)
TOTAL LENGTH		4010
WIDTH (Normal track)		1929
HEIGHT (to the top of muffler)		2568
WEIGHT. (Kg)
STR. WT. (Rollover)		2670	2960
STR. WT (WITH CAB)		2885	3175
MIN. OP. WT. (kg)
Min. op. wt. (kg. With rollover)		2900	3190
Min. op. wt. (kg. With cab)		3115	3405
Weight distribution (Kg)
Front wheel		1350	1470
		1415	1535
Rear wheel		1550	1720
		1700	1870
Wheelbase (mm)		2188	2236
Track (mm)
Front		1500	1450
Rear		1510	1510
Min. Ground clearance (mm)		430	340
Turning Radius (m)
Turning radius(without brake)		4. 8	4. 8
Turning radius(single brake)		4. 2	4. 2
Tire
Front		6. 5-20	8. 3-24
Rear		14. 9-30	14. 9-30
Theoretical forward speed (Km/h)
L	1st	2. 27
	2nd	4. 02
	3rd	6. 47
	4th	8. 10
H	1st	9. 08
	2nd	16. 08
	3rd	25. 88
	4th	32. 42
Theoretical reverse speed (Km/h)
R	1st	3. 16
	2nd	12. 64
Engine
Model		LR4105C
Type		Water cooling, 4-cylinder, direct injection
Bore×stroke (mm)		105 X 125
Rated power (kW)		48
Rated speed (r/min)		2200
Transmission
Clutch		Dry, single plate and dual stage
Gear-box		Iz planetary reduction compound type
Rear central drive		Bevel gear
Differential		Closed type(with differential lock)
PTO
Speed of PTO (r/min)		540 or 1000
Type		Semi-independent
Rotation direction		Clockwise (looking from rear end)
3 point linkage
Lift force (at the end of 24’’)(N)		12000
Hydraulic oil pump		CBN-E316FL
Hydraulic system type		Position, Mixed and floating control
Safety valve open pres. (MPA)		16±0. 5
Electrical instrument
Generator		JF1521B
Starting motor		QD154E
Battery		6-Q-165 Lead-acid battery
Heard lights (W)		45/40w double filament bulb
Rear working lights (W)		45W
Front turning lights (W)		21W

We can supply you different model of Foton tractors.
