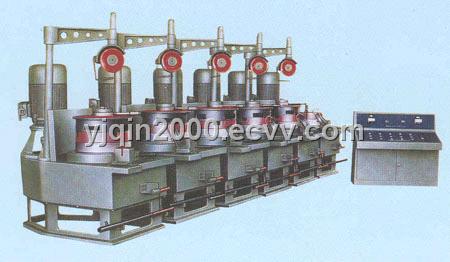

Wire-Drawing Machine

Detailed Product Description

Specifications︰

Material intensity:no less than 110kg/mm2;
Max dia of material:6.5mm
Min dia of material:2mm;
Dia of block:1-6/560;
Max average condensation:30%
Ttal condensation:78-88.5%;
Max.speed of block:245m/min;
Total power:18.5-30KW;
Weight:2000kg;
Overal size:1700*1150*1750mm

Advantages︰

This machine could use high,medium and carbon steel,as well as copper,alumium,and alloy material to make nails.The machines are applied to drawing wire in the factories such as wire-steel factory,metal mesh factory and nail making factory etc.

Structure:The equipment consists of main reduction box,die casing,wheel frame,sash brace and electeical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed.The drawing blocks are vertically fixed in sealed box body.The gear pair are lubricated with oil.
In order to lower residual heat on the surface of the block,the cooling system is installed in interwall of the block.The wortle is soaked in cooling watr to reduce its working temperature.
The machine runs with carwl or linkage.The safety halt gear is installed by the position of operating block.

Place of Origin:	Jiangsu in China
Payment Terms:	L/C,T/T(Bank Transfer),D/P,Western Union,PayPal,
Minimum Order:	Piece/Pieces 1
Supply Ability:	Piece/Pieces\|200\|Month
Delivery Time:	25DAYS
