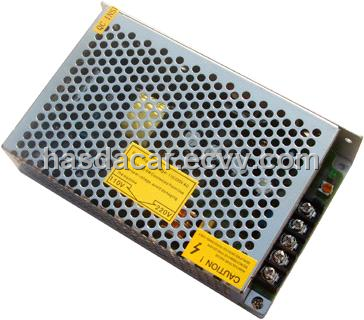

DC power

DC switch Power
Protection from Short circuit, OverLoading, OverVoltage
Voltage input &Frequency Range:110V/220V AC conversion/47-63Hz
Start impact electric wave:20A@120V AC(cold start)
input adjustment range:±10%(Rated output Voltage)
Overloading protection:105%-200%(Rated loading) Self-resume
OverVoltage Protection:115%-135%(Rated Output Voltage)
Short Circuit protection: Self-Resume
Output start time:≤2S@120VAC, ≥20mS@230VAC
Output keep time:≥10mS@120VAC,≥20mS@230VAC
insulation strength:input--output:AC1500V,1min
input--cover:AC1500V,1min
output--cover:DC500V,1min
Vorking Environment:-10℃-50℃;20%-90%RH(No frost)
Safe standard:Design refer to EN/UL60950
electromagnetism compatible standard:design refer to EN55022 Class B, EN61000-4-2/-3/-4/-5/-6/-11
Size:159x98x42mm

Place of Origin:	Shenzhen in China
Model No:	AD1210A
Brand Name:	HASDA
