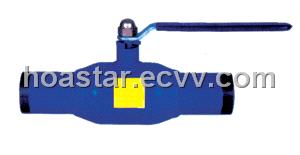

API Fully Welded Ball Valves

Detailed Product Description

Standard Compliance
1) Design and manufacture: API 6D, ASME B16.34
2) Face to face dimension: ASME B16.10, API 6D
3) End flange dimension: ASME B16.5, DIN2501
4) Welding ends dimension: ASME B16.25
5) Pressure-temperature rating: ASME B16.34
6) Inspection and test: API 598, API 6D

Specifications
1) Type of operation: Manual, gear, electric, pneumatic, gas over oil
2) Size: DN15 to DN400

3) Pressure: PN16 to PN 40

4) Anti-static design, fire safe design: As per API 607/6FA
5) Material: A105, LF2, F304, F304L, F316, F321, F51

HS Code: 84818010
