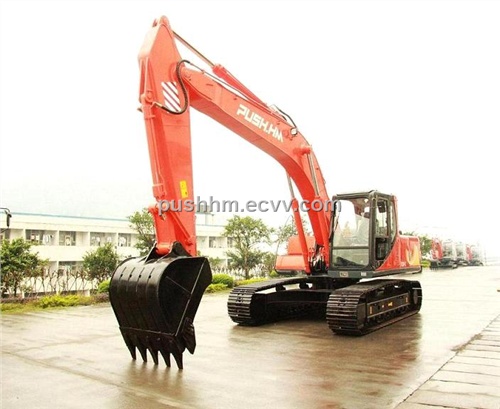

Crawler Excavator (PZ220-7L)

Detailed Product Description

Model	PZ220-7L
Standard Bucket capacity (m³)	1.0
Operating weight (T)	22
Engine	Model	6BT5.9AA
	Power/Rotate speed (kw/rpm)	112/1950
	Fuel tank （L）	320
Hydraulic system	Main oil pressure (Mpa)	35
	Max variable pump capacity (L/min)	452
	Operating style	Pilot control
	Capacity of hydraulic oil tank (L)	200
Performance data	Swing speed (rpm)	12.2
	Travel speed (km/h)	3.1~5.63
	Max Gradeability ( % )	70
	Max traction force (KN)	208
	Ground pressure (Kpa)	45.6
	Bucket digging force (KN)	138
	Stick digging force (KN)	105
Dimensions (mm)	A Total width (upper carriage)	2700
	B Overall height	2890
	C Overall width	2710
	D Crawler width	600
	E Min ground clearance	450
	F Overall length	8710
	G Crawler length	4484
	H Crawler ground length	3600
	I Counter weight clearance	1025
Working range (mm)	A Ground digging reach	9895
	B Min slew radius	3098
	C Max working height	9152
	D Max digging depth	6375
	E Max dumping height	6534
	F Max vertical digging depth	6335
