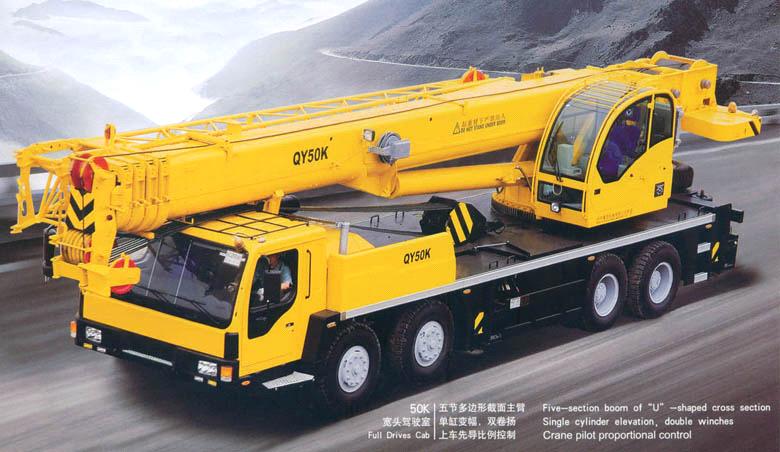

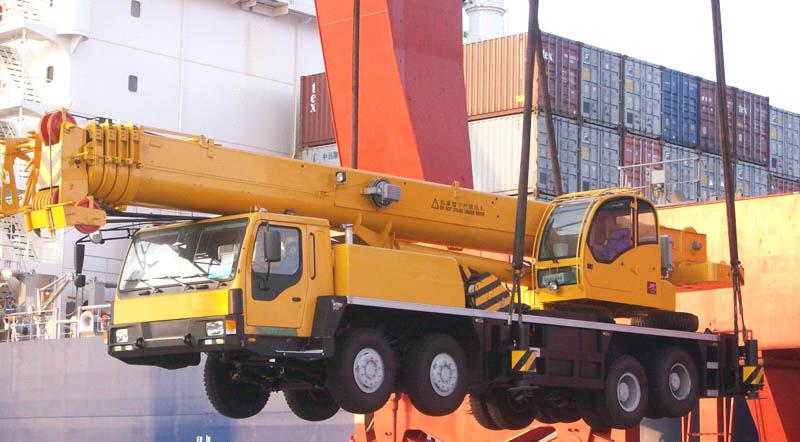

50t CE Crane

Prev Product

Next Product

Detailed Product Description

50t CE Crane is with CUMMINS engine. If CE is not necessary, there is STEYR engine model as choice.

Dimensions
Overall length (mm):	13100
Overall width (mm):	≤2750
Overall height (mm):	3350
Wheel base
1st (mm):	1520
2nd(mm):	3815
3rd(mm):	1350
Track
1st (mm):	2240
2nd (mm):	2055
Weight
Dead weight in travel state (kg):	38580
Axle load
1st axle(kg):	12950
2nd axle(kg):	25630
Power
Model of engine:	STEYR CUMMINS
Engine rated output kW(r/min):	206/2200　216/2100
Rated torque N.m(r/min):	1100/1400　1200/1400
Rated turning speed (r/min):	2200　2100
Travel
Travel speed
Max. travel speed (km/h):	66　63
Min. speed(km/h):	2.7　4.3
Turning diameter
Min. turning diameter (m):	24　24
Min. turning diameter at boom tip (m):	26.8　26.8
Min. ground clearance(mm):	285　285
Approach angle:	16°　16°
Departure angle:	11°　11°
Braking distance(at30km/h):	≤10　≤10
Max. grade ability:	27%　28%
Fuel consumption (L):	～32　～32
