Ultrasonic Riveting Machine Illustration

Detailed Product Description

Main technical parameter

1. Output: 60pcs/min

2. Ultrasonic frequency: 20 kHz

3. Max riveting sectional area: 10mm2

4. Beat speed: 3000 times/min

5. Horn speed: 5m/s

6. Horn weight: ≥ 300g

7. Complete machine power: 1000W

8. Complete machine weight: 80KGS

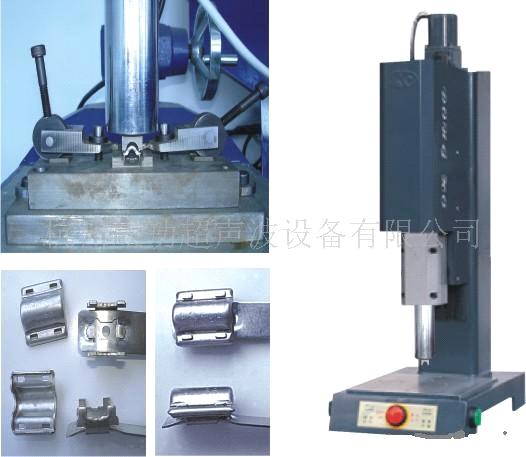

Ultrasonic Riveter consists of ultrasonic transducer, booster, horn, fixed sleeve, frame (with movement device) and generator. Its work principle is that ultrasonic force horn (force device) vibrates with high frequency, forcing riveting end to shock the work piece with high speed. Because of the high speed, most energy can’t transfer to the inner of work piece; the shocked part of work piece is deformed, the riveting work is completed.


The main characteristic of ultrasonic riveter is for the force device. It is ultrasonic generator, not original hydraulic or aerodynamic force or electrodynamics force. It has the superiority of high vibration frequency, large amplitude and acceleration of particle movement. The riveting force device works in pulse. And its high speed, frequency and acceleration result in high work efficiency. It’s especially suit for riveting tiny, strange shaped work pieces and special work pieces.
Place of Origin:Zhejiang in China
Brand Name:FYCG
Payment Terms:T/T(Bank Transfer),
Delivery Time:20 days
