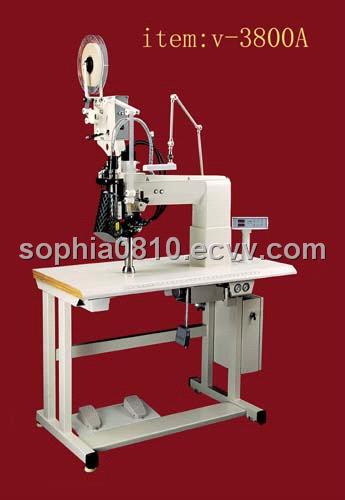

Hot Air Seam Sealing Machine (V-3800A)

APPLICATION:
Economical production of weatherproof products such as rain-wear, ski-wear, wet/dry suits, tents, car covers, etc. Seamsesling applicable to a large variety of fabrics such as PU, PE, PVC, Neoprene, AC, etc

FEATURES
IC monitoring and interlocking on nozzie pressure, temperatore and motor speed status protect the machine against mist and ensore the quality of the final product.
Touch screen multi-functiondisplay unit provide clear indications on fabric speed, operaling status and alarming.
Fully automatic temperature controller with both set point and process value indications.
Advance design: Sealing temperature, speed and status display controlled by individual micro controllers.

Technical datas
* Model: V3800A,
* Power supply: AC220V 50/60 Hz
* Power Consumption: 3000W
* Compressed Air: 0.4~~0.6 Mpa
* Air Consumption: 60~~120 L/min
* Sesling Speed: 0~32 ft/min
* Nozzie Temp: Room temperature~ 800 c
* Nozzie Air Pressure: 0.1~~0.2 Mpa
* Nozzie Unit: 22mm (Others May Bespeak)
* Roller Pressure: 0.4~~0.6 Mpa
* Upper RollerWidth: 25.4mm
* Lower RollerWidth: 28mm
* Overall Dimensions: 1200mm(L)*600mm(W)*1600mm(H)
* Overall Weight: 130kg
