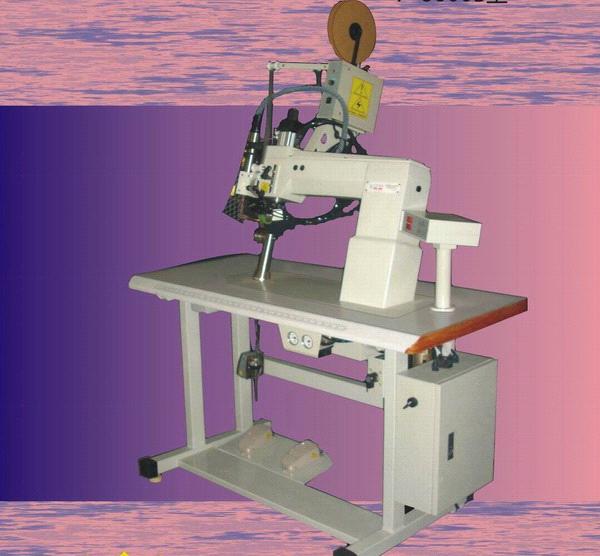

Hot Air Seam Sealing Machine (V-3800A)

Detailed Product Description

APPLICATION:
Economical production of weatherproof products such as rain-wear, ski-wear, wet/dry suits, tents, car covers, etc. Seamsesling applicable to a large variety of fabrics such as PU, PE, PVC, Neoprene, AC, etc

FEATURES
IC monitoring and interlocking on nozzie pressure, temperatore and motor speed status protect the machine against mist and ensore the quality of the final product.
Touch screen multi-functiondisplay unit provide clear indications on fabric speed, operaling status and alarming.
Fully automatic temperature controller with both set point and process value indications.
Advance design: Sealing temperature, speed and status display controlled by individual micro controllers.

Technical datas
Model: V3800A,
Power supply: AC220V 50/60 Hz
Power Consumption: 3000W
Compressed Air: 0.4~~0.6 Mpa
Air Consumption: 60~~120 L/min
Sesling Speed: 0~32 ft/min
Nozzie Temp: Room temperature~ 800 c
Nozzie Air Pressure: 0.1~~0.2 Mpa
Nozzie Unit: 22mm (Others May Bespeak)
Roller Pressure: 0.4~~0.6 Mpa
Upper RollerWidth: 25.4mm
Lower RollerWidth: 28mm
Overall Dimensions: 1200mm(L)*600mm(W)*1600mm(H)
Overall Weight: 130kg

Place of Origin:	Fujian in China
Model No:	V-3800B
Brand Name:	Xiangtai
FOB Price:	3367-3370 USD FUZHOU
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Delivery Time:	15 days after receive the payments
