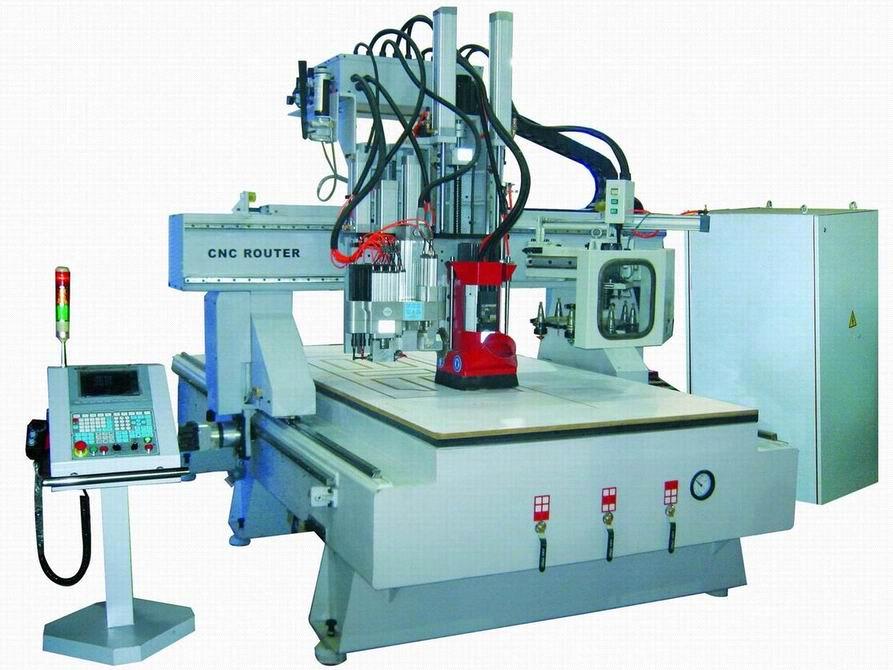

Woodworking CNC Router TR408D

Detailed Product Description

NO.	Description	Parameter
1	X, Y, Z Working Area	1220X2440X250mm
2	Table Size	1220X2440mm
3	X, Y, Z Traveling Positioning Accuracy	±0. 03/300mm
4	X, Y, Z repositioning Positioning Accuracy	± 0. 05mm
5	Lathe Structure	Steel tube frame
6	X Structure	Gear Wheel Transmission, Hiwin rail Linear Bearings
7	Y Structure	Gear Wheel Transmission, Hiwin rail Linear Bearings
8	Z Structure	Ball Screw, Hiwin rail Linear Bearings
9	Max. Consume power	20Kw
10	Max. Speed	0-50000mm/min
11	Max. Working Speed	0-30000mm/min
12	Spindle Power Motor	8kw italian HSD spindle with auto tool changing function
13	Tools magazine and tools holder	8pcs round
14	Spindle Speed	0-24000RPM
15	Working Mode	Japan yaskawa Servo System
16	Working Voltage	3 phase AC380V/50HZ/60Hz
17	Command Code	G code(uoo, mmg)
18	Operating System	Windows taiwan SEYNTEC System
19	Interface	Internet or USB
20	System Memory	256M (or pen driver)
21	Collet	ER32(Φ3. 175, Φ4, Φ6, Φ12. 7)
22	X, Y Working Delicacy	< 0. 02mm
23	Software	Type3 software, copy artcam software
24	Running circumstance	Temperature: 0℃～45℃ Relative humidity: 30%～75%
25	Packing Size	3500X2300X2300mm
26	Net Weight	2830KG
27	Gross Weight	3200KG
Option	Vacuum table	Three zones grid vacuum table
	Vacuum pump	Germany becker 4kw 140cbm
	Dust extractor	1phase 2. 2kw single bag
	Air compressor and air sanctifier	0. 36cbm/min
