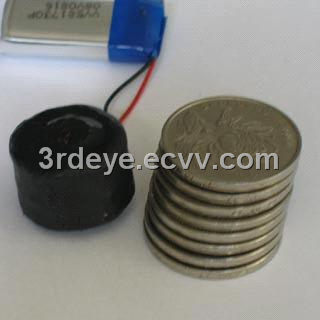

Mini Module Camera (WS-528)

Detailed Product Description

Product selling point:

>Small size of transmission camera（21mm X 16mm）

>super ligth: 6.0g only

> Suitable to hide into small hole,like the lock,etc.

> Built-in antenna

>Single chip 1/3” format video camera

> Low lllumination <0.05lux>, night vision available

> High resolution provides very clear image (628X582 pix; 420TV line)

>Min. 100m transmission distance without blocks

1 Parameter list:

Item	Value
Transmission Frequency	ISM 2,400MHz~ 2,483MHz 4CH
Audio subcarrier frequency	6.0Mhz;6.5Mh
Modulation Mode	FM
Antenna Type	Hidden
Unobstructed Effective Range	100m(Without Block)
Operating Temperature	0℃~ +50℃ / +14℉~ +122℉
Storage Temperature	-20℃ ~ +60℃ / -4℉ ~ +140℉
Operating Humidity	85%RH
Imaging Sensor Type	CMOS
CMOS Total Pixels	628×582(PAL)/ 510×492(NTSC)
Horizontal Resolution	420 TV Lines
View Angle	62°
Minimum Illumination	0.05 Lux / F1.5
Transmission Power	10mW
Supply Voltage	DC: 3.6-6V
Current Consumptio	106mA
Dimensions(DX H)	21mm X 16mm
Weight	6g

* Channel Frequency: CH1=2414MHz;CH2=2432MHz;CH3=2450MHz;CH4=2468MHz

2 Line Assignment :

3 power Switch

power No	SW1.4
Power ON	ON

4 Channel Switch

Place of Origin:	Guangdong in China
Model No:	WS-528
Other Price Terms:	FOB shenzhen
Payment Terms:	T/T(Bank Transfer),Western Union,PayPal,
Minimum Order:	Set/Sets 5
Supply Ability:	Set/Sets\|2000\|Month
Delivery Time:	samples are ready
