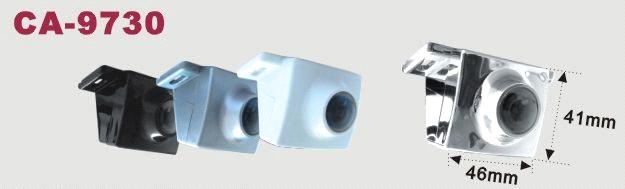

Surveillance Camera Model (Ca730)

* Ip rating Ip66

* Images Sensors 1/3"CCD COLOR

* TV System PAL/NTSC

* Effective Pixels 628X582/628X512

* Sensing Area(mm) 4. 9*3. 7

* Resolution(TV Lines) 420 TV line

* Video Output: 1Vp-p, 75 Ohm

* Gamma Consumption: 0. 45

* Color of case Silver/black/chrome/white

* S/N ratio: Better than 48dB

* Lens: F=1. 9mm / F=2. 1

* Lens Angle(Deg. ): 170degree

* Current Consumption(mA): 300ma

* Power Supply(DC) 12V

* Operating Temperature(Deg. C): -20~+75(RH95% Max. )

* Storage Temperature(Deg. C): -40~+85(RH95% Max. )
