CNC Angle Drilling & Marking Machine

FOB Price:	10.00 - 1000.00 USD/Set
Supply Ability:	10 Set/Sets per Month
Shipping:	60 days
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shandong in China
Packaging Details:	WOODEN CASE

Specifications

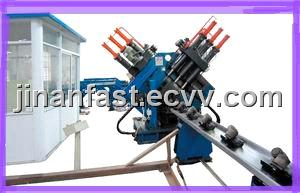

CNC Angle Drilling & Marking Machine

Technical data:
Model: JX2532
Size of angles (mm): 140x140x12-250x250x32
Max. Drilling Diameter (mm): 40
Driller no. Per side): 3
Stroke of main spindle (mm): 40
Speed of main spindle (r/min): 180-560 (nonpolar adjustable) CNC Axes): 3
Marking character no): 14
Size of marking character (mm): 12.5x20x30 (or user-defined) Marking force (KN): 1000
Max. Angle Length (m): 11
Feeding speed of angle on X axes (m/min): 10-60 (nonpolar adjustable)
Working pressure of Hydraulic system: High-pressure(Mpa)25
Low-pressure(Mpa)6
Power (KW): X axes -4.4 AB axes-2.0
Main motor power-15

For any details, please feel free to tell us. Welcome to view: jnfate com.
