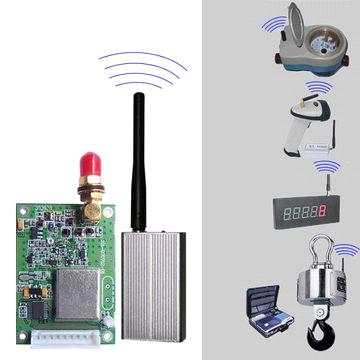

RF module, Wireless Data Transceiver

RF modules used in remote control, AMR, SCADA, telemetry, monitoring systems. Eeasy to use, 433/868/915MHz ISM band.

 Main Characteristic:
* IC: Based on Chipcon  CC1020 RF chip, High SINAD;
*  Nakedness and small size, suit for embedding;
* Narrowband and anti-jamming commendably;
* Saving power model: awaken from Hardware, awaken from COM Port, awaken from Air;
* Transparent data interface, suitable for any standard or non-standard user protocols;
* Auto filtration of false data produced in the air, and able to transmit long data frames;
* Good reliability for long-time use, low failure rate, and suitable for both indoor and outdoor use



Products Main Features:
* Carrier frequency: 315M, 433M, 434M, 450M, 670M, 868M, 915MHz or ISM others.
* Provide rich interface: standard: RS-232/TTL/RAS-485;
* Interface format: 8N1/8E1 user-defined, or customization for other format interface;
* 8 channels, expandable for 16/32 channels according to requirements of customers;
* Baud rate: 1200/2400/4800/9600/19200/38400bps;
* Integration of receiving and transmitting and half duplex;
* Low power consumption and sleep function;
* Operation Temperature: -20~+65Celsius(customized batch order for industrial level);
Temperature Range. -40 to 80 C (-40 to 176 F).
 * Impedance: 50& Omega(SMA antenna port, multiple antenna options available);
 * Complying with EN 300220 and ARIB STD-T67;

 Applications areas:
* Automatic meter reading (AMR) and home automation;
* Supervisory control and data acquisition (SCADA);
* Remote control, industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Wireless remote control alarm, Wireless sensor;
* Sports training & competition;
* Wireless POS, PAD, wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Wireless electronic display screen and queuing machine;
