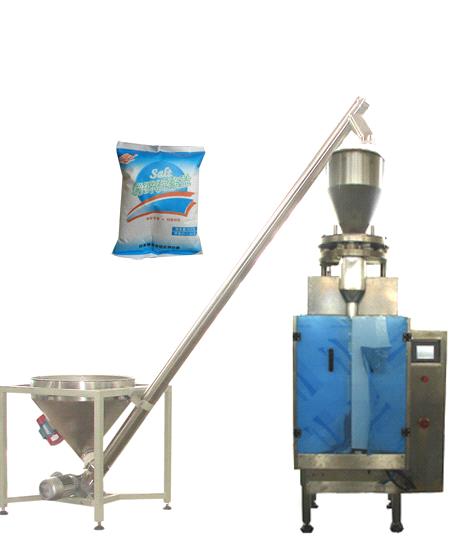

Automatic Salt Packing Machine

This machine consists of a cup metering device and a VFS 4000 vertical filling-packaging machine, especially suitable for the metering packaging of fine-particle products, It integrates the functions of metering, bag-making,sealing, printingandcounting. Its operating interface adopts the advance touch screen and has the automatic bias-correction function.

Technical parameters：
Metering capacity:100～1000g
Speed：50～60 bags／min
Bags size：(50～280)×(80～180) mm(L×W)
Accuracy：±1%
Compressed air requirement：0.6 MPa 0.36 M3／min
Reel outer dia：Ф400 mm
Core inner dia：Ф75 mm
Machine weight：500 kg
Power source：5.5 kW 380 V±10% 50 Hz
