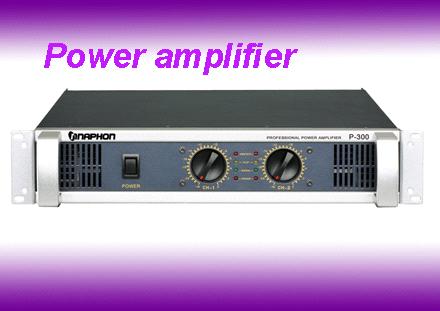

Naphon Power amplifier P Series

Naphon Power amplifier P Series

Detailed Product Description

Two Channels, it can be bridged

Time-delay starting protection and protections for the overloading, over temperature, short circuit, load etc

Level indicator in 2 x4 LED, status indicator for power, bridge and protection

2 fans for cooling

Power/signal and clip indicate

Protected by DC safeguard output, overloading, startup boot-strap short test

Difference voltage can be offered according to client requirement

SPECIFICATION

Model No.	P-200 P-300 P-400 P-500 P-600 P-800
Output Power (8 Ohm)	2x200W 2x300W 2x400W 2x500W 2x600W 2x800W
Output Power (4 Ohm)	2x350W 2x500W 2x700W 2x850W 2x1050W 2x1350W
Bridge 8 Ohm	650W 1000W 1250W 1450W 1750W 2300W
Bridge 4ohm	950W 1300W 1700W 1900W 2300W 2900W
Frequency Response	50Hz~50KHz+/-3db
Input Sensitivity @8Ohm	1. 0V
Height	2U
Gross Weight	20. 00KGS 22. 00KGS 25. 00KGS 27. 50KGS 31. 00KGS 36. 00KGS
Dimensions	48. 20x45. 30x13. 20cm

Place of Origin:	Guangdong in China
Model No:	P series
Brand Name:	Naphon
Other Price Terms:	;
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	standard export packing;
