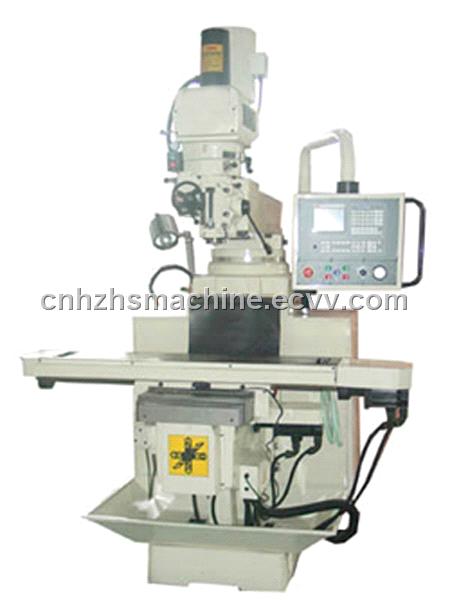

CNC Vertical Milling Machine (HS-5VSS)

Detailed Product Description

Specification:

* Range of spindle: 50-3500rpm

* Milling head type: Variable

* Spindle Taper: NT-40

* Travel of spindle: 127mm

* Motor Spec.: 3.75kw

* Distance from spindle center to column: 680mm

* Distance from spindle nose to table surface: 120-480mm

* Table size (L*W): 1370*305mm

* Load on the table: 400kgs

* T-slot size and no.: 16mm/3 no.

* Longitudinal travel(X axis): 820mm

* Cross travel(Y axis): 410mm

* Knee travel(Z axis): 360mm

* Package size: 2700×2230×2360mm

* N.W: 1720kgs

* Spec. Of CNC Controller System

* Controller Type: KND 100M

* NO. Of control axis/connecting: 3/3.

* Control measurement: 0.001mm

* Repeatability: 0.01mm

* Positioning: 0.01mm

* Rapid movement: 10000mm/min

* Rate of feeding: 0%-150%
