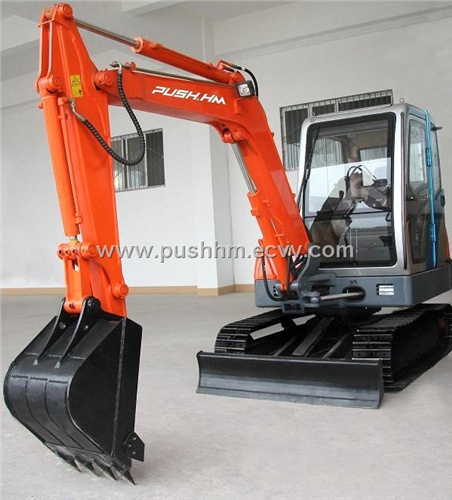

Mini Excavator (PZ35-7)

Detailed Product Description

Model	PZ35-7
Standard Bucket capacity (m³)	0.12
Operating weight (T)	3.5
Engine	Model	YANMAR4TNV88L
	Power/Rotate speed (kw/rpm)	25.8/2200
	Fuel tank （L）	52
Hydraulic system	Max variable pump capacity (L/min)	2*32.12+26.4
	Max working pressure (Mpa)	21
	Operating style	Pilot control
	Capacity of hydraulic oil tank (L)	50
Performance data	Swing speed (rpm)	0~10
	Travel speed (km/h)	2.4~4.7
	Max Gradeability ( % )	64
	Bucket digging force (KN)	24
	Ground pressure (Kpa)	29
	Max traction force (KN)	29.9
	Productivity ( m3/h )	43
Dimensions (mm)	Boom length	2500
	Stick length	1250
	Total width (upper carriage)	1540
	Total width (under carriage)	1550
	Overall height	2345
	tail swing radius	1428
	Platform clearance	580
	Overall length	5023
	Crawler length	2129
	Crawler width	300
	Crawler height	519
	Main machine length	2772
	Crawler distance	1250
Working range (mm)	Max vertical digging depth	3080
	Ground digging reach	5161
	Max working height	4866
	Max dump height	3511
