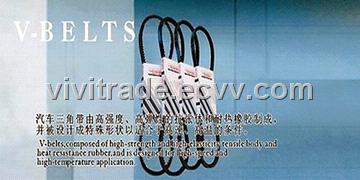

Auto Raw Edge Cogged V- Belt
1. For generators, water pumps or air-conditioning compressors, etc., suitable for high load, high temperature, high-speed driving.
2. Features:
High flexibility
Long service life
Stable operation
Heat resistance, oil resistance, wear-resistant
3. Construction:
The surface of the fabric
Tension line: low elongation polyester tension line
Layer: adhesive PVC rubber
Base: horizontal textile fibers containing polychlorinated butadiene rubber compounds
4.Type and Model
|
Type |
Top Width |
Height |
Angle |
Length |
|
AV10(9.5) |
10.0 mm |
8.0 mm |
38° |
600-1800mm |
|
AV13(12.5) |
13.0 mm |
9.0 mm |
38° |
600-1800mm |
|
AV17 |
15.0 mm |
11.0 mm |
38° |
750-1825mm |
|
AV22 |
17.0 mm |
13.0 mm |
38° |
750-2500mm |
Model
Eg. AV10*1000:AV10-the width of a belt, 1000-the length of a belt
