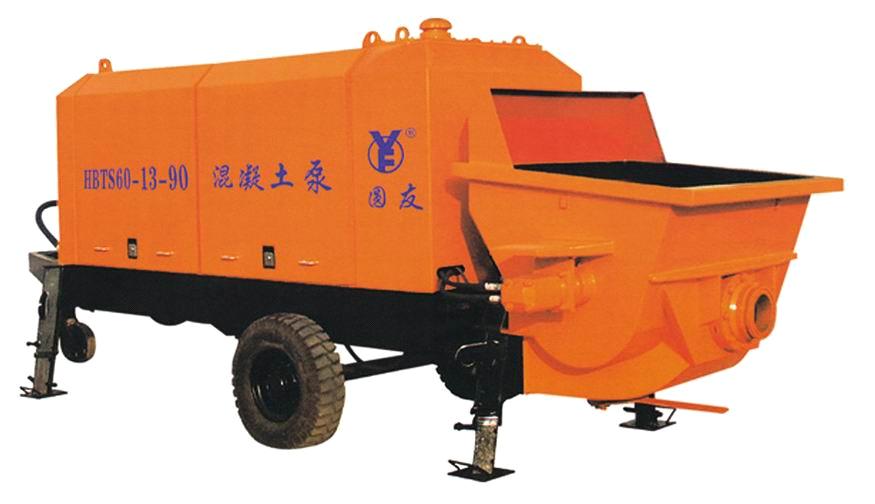

Concrete Pump (HBTS60-13-90)

Parameter name

unit

HBTS60-13-90

Most concrete transportation capacity

M³/H

60

Concrete feeding pressure

MPa

13

Theoretical transmission distance (vertical / level )

m

200/1000

Pumping fuel tanks bore / itinerary

MM

φ125/1600

Concrete cylinder specification: Cylinder bore * traveling schedule

MM

φ200/1600

Main electrical engineering model number

Y280M-4

Electrical engineering power

KW

90

Rated voltage

V

380

Hydraulic system form

Open System

Hopper volume

M³

0.8

The height that anticipate up

MM

1400

Operating valve form

S tube valve

Slump degree

MM

8-23

Aggregate particle size

MM

≤40

the transport tube path

MM

φ125

Dimensions length*width*height

MM

6050×2130×1870
