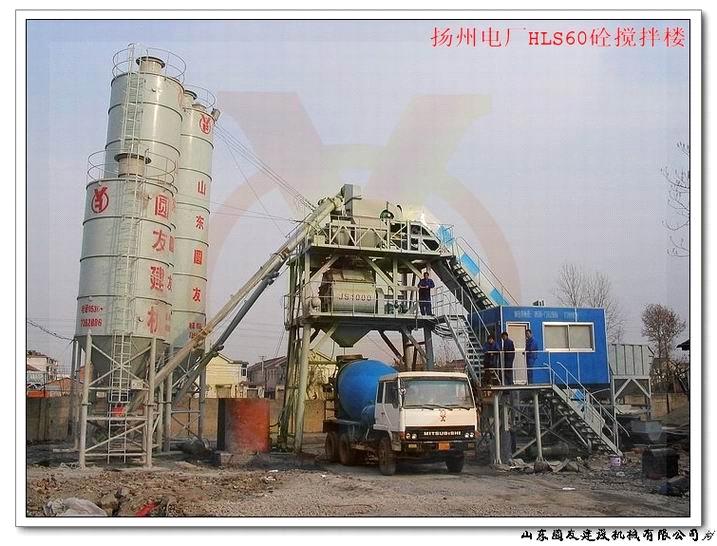

Concrete Mixing Plant (HLS60)
(1) It have the characteristics of high production efficiency
(2) low energy consumption,
(3) plot area saving is widely applied to concrete production of various projects of Railways, highways, bridges, water conservancy and tall Building.
technical parameter of HLS60 concrete mixing plant
Technical parameters of HLS60 concrete mixing plant
Theory productivity
60m3/h
Mainframe model
JS1000
Normal volume of mainframe
1000L
The maximum particle size of mixing aggregate
80mm
Power of mixing motor
2×18.5kw
Upgrade machines power of aggregate hopper
15kw
The width of upgrade machine belt
650mm
Transportation capacity of belt conveyor of aggregate upgrade machine
350t/h
Aggregate batching system
PL2400
Volume of aggregate soil
3×15m3
Batching capacity of aggregate
2400L
Kinds of aggregate
3
Volume and number of powder silo
50t/100tchoice according to request of user
Powder screw conveyor
60t/hchoice according to request of user
Metering range and accuracy of aggregate G
04000±2kg
Metering range and accuracy of water W
0500±1kg
Weighing range and accuracy of cement C
Weighing range and accuracy of fly ash F
0350±1kgchoice according to request of user
Weighing range and accuracy of admixture A
050±1kg
Cycle
60S
Discharge height
3800mm
Power of the whole machine
About 80kw (not contain screw conveyor)
Weight of the whole machine
About 41T(not contain screw conveyor and power soil)
External dimension (L*W*H)
According to the model of disposition and layout
