sweeper truck

Detailed Product Description

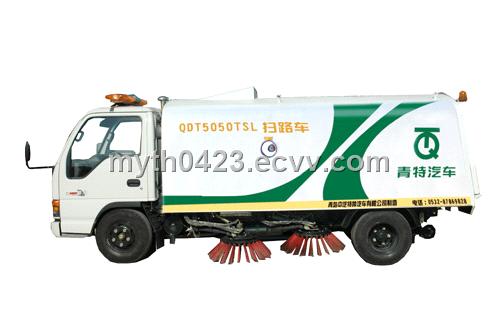

The QDT5051TSL road sweeper adopts the Qingling chassis NKR55LLACJAY with special settings.The special settings are composed of power system,tanks,absorbing system,hydraulic system,electric control system,filtering system and dust cleaning system.

Tech-parameter

Motor type:4JB1-TC（Euro ii）

Auxiliary motor type:4JB1

Moror Power: 57kw

Auxiliary Moror Power : 57kw

Dead weight: 4400 kg

G.V.W:5300kg

Out-shape dimension (length*width*height): 5650*2000*2350 (mm)

Track:3360 mm

Wheelbase ：1385/1425（mm）

Max. lifting angle: 48 2

Sweeping width: 2000-2800(mm)

Work speed:3-15(km/h)

Max. absorbing diameter:80 mm

Max. sweeping efficiency:98%(mm):80

Successive working time:8h

Side-vehicle Noise : 80db

Chassis system

NKR55LLHACJAY

Chassis type: NKR55LLHACJAY

Chassis motor type: 4JB1-TC(EURO ii)

Place of Origin:	Shandong in China
Brand Name:	Qingte
FOB Price:	5000-50000 USD Qingdao
Other Price Terms:	;
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|1000\|Year
Package:	;
Delivery Time:	30
