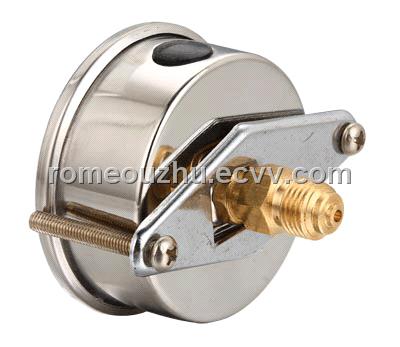

Pressure Gauge

Detailed Product Description

Dial size:1.5"(40mm),2.0"(50mm),2.5"(63mm),3.0"(75mm),4.0"(100mm)

Case type:polished 304 stainless steel case and roll ring,with U-clamp

Window:polycarbonate window

Face and pointer:quality steel finish

Movement:brass

Bourdon tube:brass or phosphor bronze

Connection:brass

Thread:1/8",1/4",3/8",1/2"BSP,NPT,BSPT or according to the customer's request

Accuracy:ASME Grade A

Pressure range:-30"Hg-0-10000psi

Fill medium: glycerine or silicone oil

Application:for rugged applications and harsh envrionment conditions,especially where pulsation and vibration is a problem

Place of Origin:	Anhui in China
Model No:	K1BK-U
Other Price Terms:	FOBCHINA
Payment Terms:	T/T(Bank Transfer),
Others Payment Terms:	negotiable
Minimum Order:	Piece/Pieces 50
Supply Ability:	Piece/Pieces\|2000\|Day
Package:	plastic bag,white box,export carton;
Delivery Time:	as soon as possible
