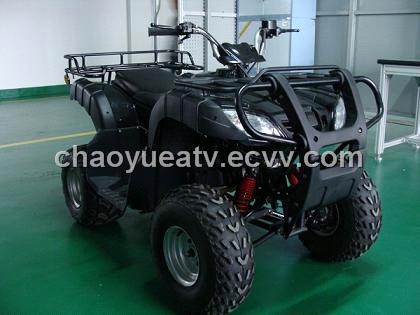

150cc Quad (2009HY)

Detailed Product Description

Engine
Engine Type	Single Cylinder, 4 Stroke, Forced Air Cooling, Automatic
Bore × Stroke	57.4×57.8 mm
Compression Ratio	9.2:1
Displacement	149.6 cc
Max Power	6.5 kw/7500 rpm
Max Torque	9 n.M/5500 rpm
Fuel Tank Capacity	7.8 L
Gear	CVT
Transmission Mode	Chain
Start Mode	Electric
Max. Speed	50 km/h
Ignition Mode	CDI
Battery Capacity	12 v 9 Ah
Engine Oil	0.8-1.2 L
Lubrication	Press Splash
Parking Trig	Mechanical Lock

Min. Ground Clearance	100 mm
Front Tire	AT19×7-8
Rear Tire	AT18×9.5-8
Front Brake	Drum
Rear Brake	Disc
Front Suspension	Independent Double A-arm
Rear Suspension	Swing Arm, Mono Shock
Prouduct Dimensions	1630×920×1050 mm
Seat Height	760 mm
Wheelbase	1100 mm
Dry Weight	150 kg
Load Capacity	90 kg
Climbing Ability	≥25°
Min. Turning Radius	2500±100 mm
Number Of Rider	1
